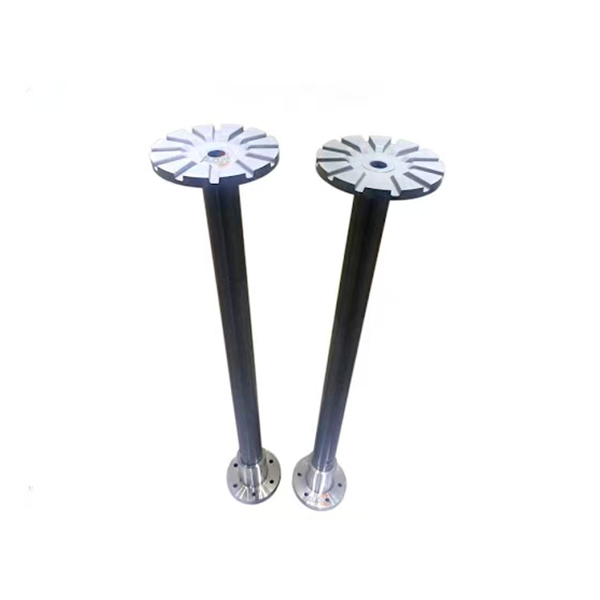

Silicon Nitride Degassing Rotor
- Extra-long lifespan
- Highly efficient and stable degassing
- Non-stick to aluminum and no slag formation
- High temperature resistance and thermal shock resistance
- Carbon-free and pollution-free
- High strength and wear resistance
- Cost reduction and efficiency improvement
Share to:
Working Principle of Silicon Nitride Degassing Rotor

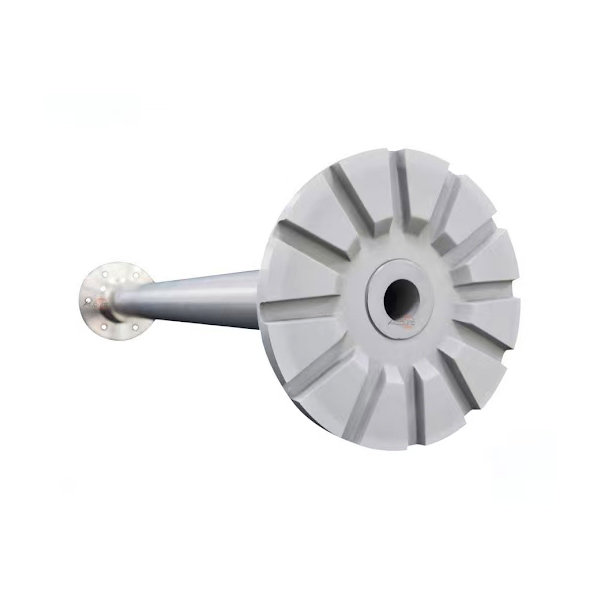

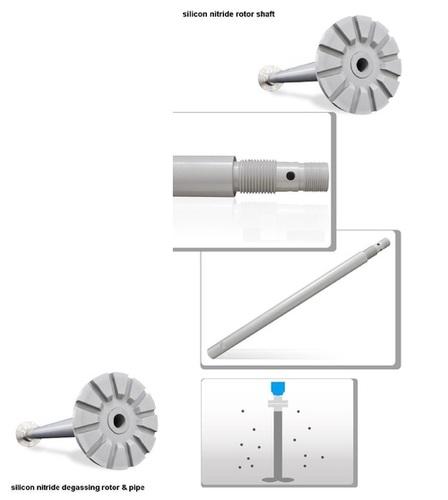

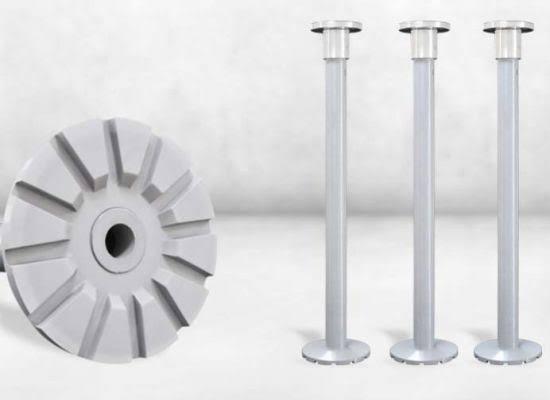

A high-performance ceramic part, the silicon nitride degassing rotor is used for online refining and degassing of molten aluminum. This rotor consists of the single structure of silicon nitride (Si3N4) ceramic material. The rotor comprises of a hollow shaft with a flow dividing impeller. This degassing rotor is used in aluminum furnaces, online degassing boxes, and hot-top casting production lines.
In the process, nitrogen or argon gases are passed through the hollow shaft whereas the rotating impeller breaks down the gas into fine bubbles. These bubbles take up the hydrogen and alumina inclusions in molten aluminum.
Advantages (Comparison with Traditional Graphite Rotors)
Very Long Lifetime
With high oxidation resistance and wear resistance, this degassing rotor will have a typical lifetime of 1 to 3 years, whereas a conventional graphite rotor can last for merely 2 to 3 months.
Resistance to corrosion by molten aluminum and non-stick property
Silicon nitride does not chemically react with molten aluminum, which will prevent contamination of aluminum billets by carbon. Surface scum formation is minimized, making cleaning easier.
Thermal Shock Resistance and Crack Prevention
The rotor is designed in such a way that it can resist thermal shock and cracks even when it comes into contact with molten aluminum.
High Temperature Strength
The silicon nitride degassing rotor maintains structural stability under high-speed gas flow and continuous high temperatures. It prevents deformation, ensures uniform bubble dispersion, and provides consistent degassing performance.
Lower Consumable Costs
The rotor's extended life cycle makes it considerably more economical than graphite rotors in terms of maintenance and production expenses.
Manufacturing Process of Silicon Nitride Degassing Rotor
To ensure long service life and stable performance, the silicon nitride degassing rotor is manufactured through a precise ceramic production process. The main steps include:
Raw Material Preparation
Silicon nitride in powder form is chosen, along with other additives, to attain the necessary density, strength, and thermal stability.
Precision Forming
The rotor body will be molded using the latest molding techniques to provide the desired shape of the combined hollow shaft and impeller assembly.
High-Temperature Sintering
The fabricated ceramic piece is subjected to high-temperature sintering for increased strength, corrosion resistance and thermal shock properties.
Precision Machining and Finishing
This is accomplished by grinding and finishing the rotor after sintering to achieve correct balance, smooth rotation, and compatibility with degassing machinery.
Quality Inspection
Each rotor is checked for size, appearance, strength, and performance to make sure it will operate dependably in aluminum refining processes.
Technical Parameters of Silicon Nitride Degassing Rotor
| Item | Specification |
|---|---|
| Material | Silicon Nitride Ceramic (Si₃N₄) |
| Application Temperature | High-temperature molten aluminum environment |
| Gas Medium | Nitrogen (N₂) / Argon (Ar) |
| Structure | Integrated hollow shaft and impeller |
| Density | ≥3.2 g/cm³ |
| Flexural Strength | ≥600 MPa |
| Thermal Expansion Coefficient | ≤3.2 × 10⁻⁶/K |
| Corrosion Resistance | Excellent resistance to molten aluminum |
| Service Life | Typically 1–3 years depending on working conditions |
| Customization | Rotor diameter, shaft length, and connection design available |
Note: Specifications can be customized according to different furnace types, degassing systems, and production requirements.
Applications of Silicon Nitride Degassing Rotor
The silicon nitride degassing rotor is widely used in aluminum processing and casting industries where high melt purity and stable production are required.
Furnaces for Melting and Holding of Aluminum
These are applied in the removal of hydrogen and non-metallic inclusions from molten aluminum prior to casting.

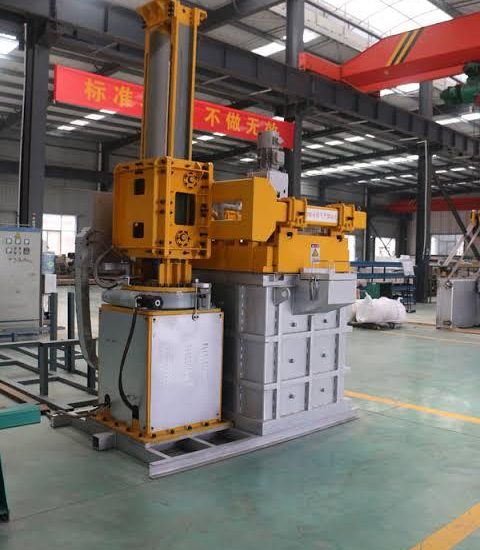

Online Degassing of Aluminum System
These systems are incorporated within the continuous casting units and degassing chambers.
Aluminum Alloy Castings Production
These systems are appropriate for producing extrusion billets, rolling slabs, and other aluminum alloy castings that need low porosity and high performance.
Metalworking and Foundry Industry
These furnaces are known to offer degassing performance, especially in cases where long-term operation is required.
Customization Services
We provide customized silicon nitride degassing rotor solutions to meet different aluminum processing requirements. Available customization options include:
• Dimensions andStructure: Customized rotor diameter, shaft length, impeller design, and connection structure based on equipment requirements.
• Performance Requirements:Optimized material selection and design according to operating temperature, gas flow, and working conditions.
• Application Adaptation:Customized solutions for different aluminum furnaces, degassing systems, and casting production lines.
With professional ceramic manufacturing capabilities, we help customers achieve stable degassing performance, extended service life, and reliable operation.
FAQ
What is the use of a silicon nitride degassing rotor?
A silicon nitride degassing rotor is employed in the online degassing process of molten aluminum. This involves the use of either nitrogen or argon gases to eliminate the dissolved hydrogen and the oxide inclusions.
Why choose a silicon nitride degassing rotor instead of a graphite rotor?
In comparison with conventional graphite rotors, silicon nitride rotors have better anti-oxidation properties, aluminum melt erosion resistance, and thermal shock resistance. Additionally, they last longer, requiring less frequent replacements.
How long is the service life of a silicon nitride degassing rotor?
The service life depends on operating conditions, including temperature, rotation speed, and usage frequency. Under normal conditions, a silicon nitride degassing rotor can typically last 1 to 3 years.
How does the degassing rotor remove impurities from molten aluminum?
The degassing rotor disperses inert gas into fine bubbles through high-speed rotation. These bubbles absorb hydrogen and carry oxide inclusions to the surface, where impurities are removed as scum.
Is the rotor able to be customized based on various machines?
Yes, we offer customization in rotor size, shaft length, impeller shape, and connection design to suit different types of aluminum furnaces and degassing equipment.
What gases can be used with the silicon nitride degassing rotor?
The rotor is commonly used with inert gases such as nitrogen (N₂) and argon (Ar) for aluminum melt purification and degassing applications.
