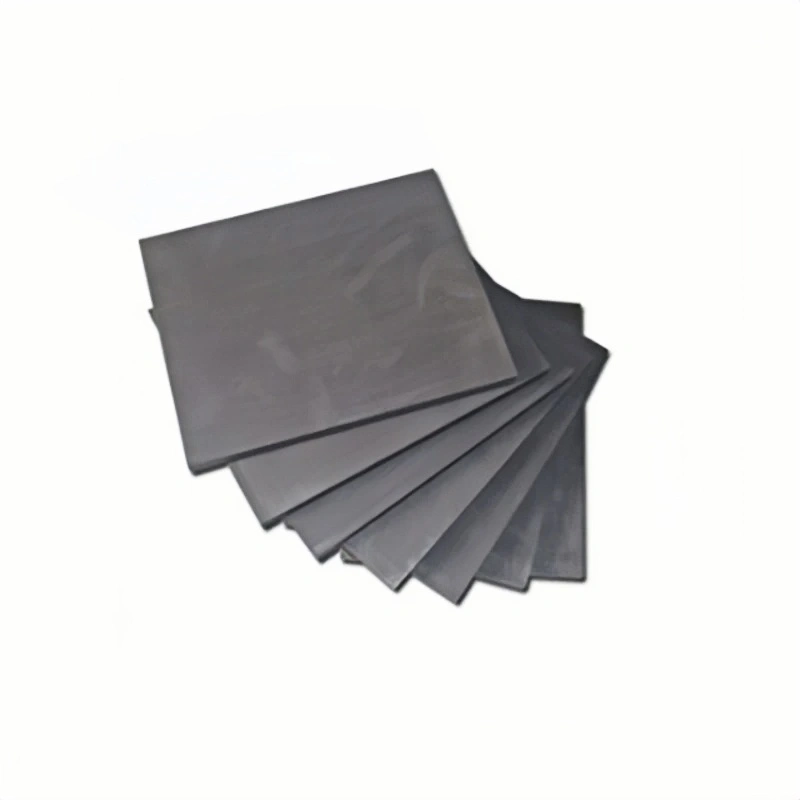

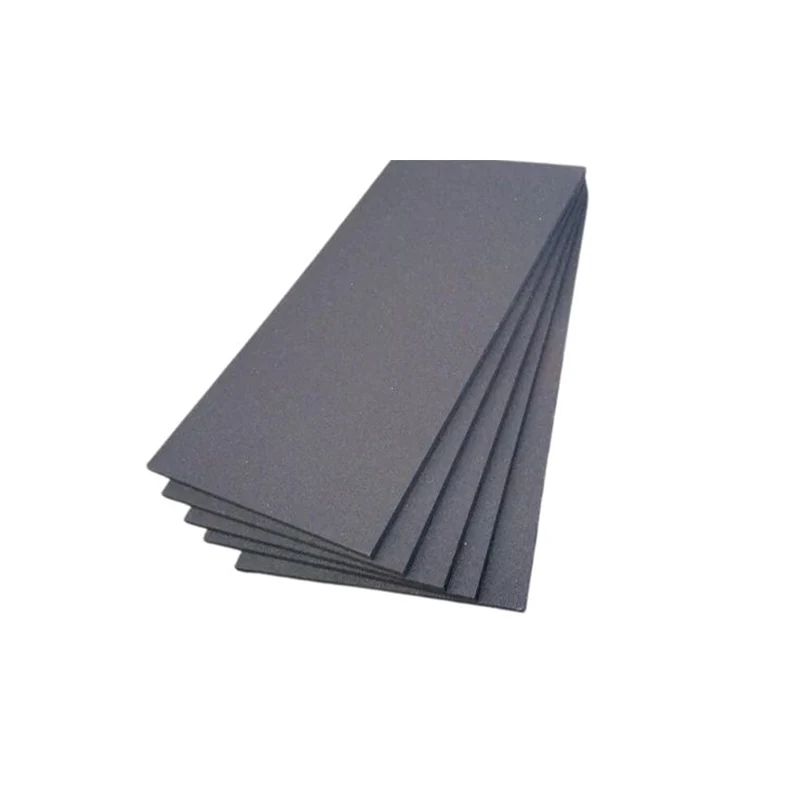

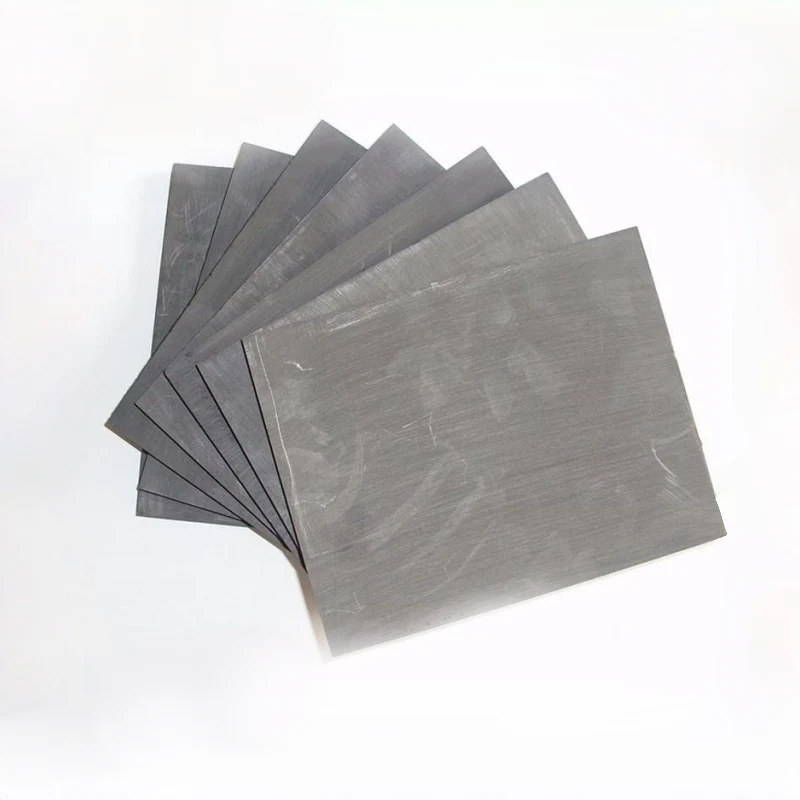

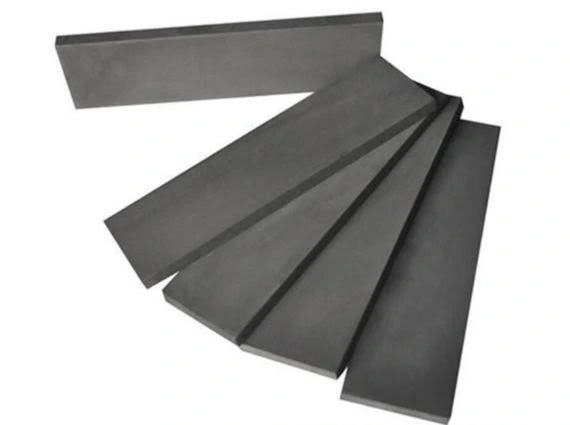

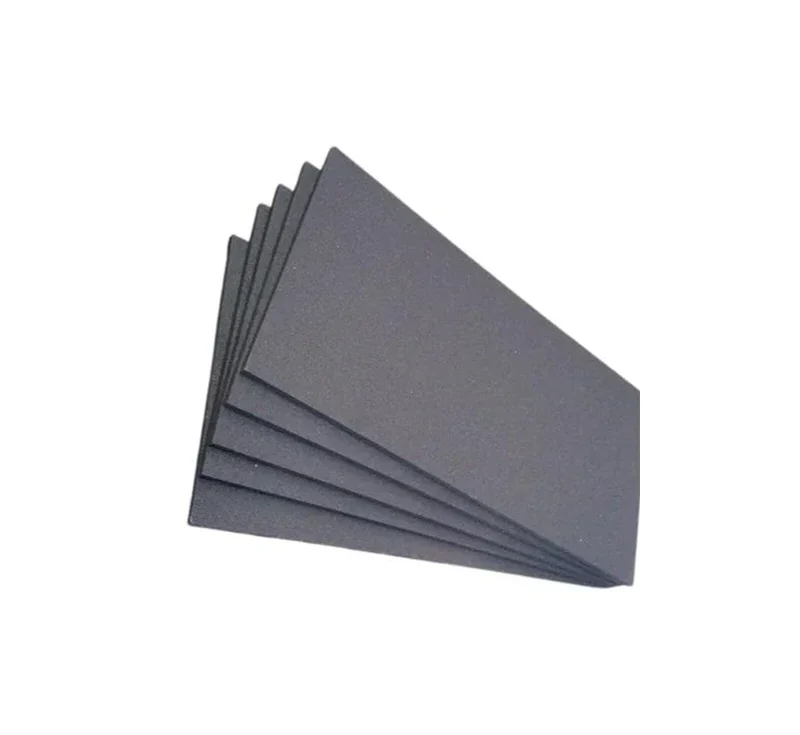

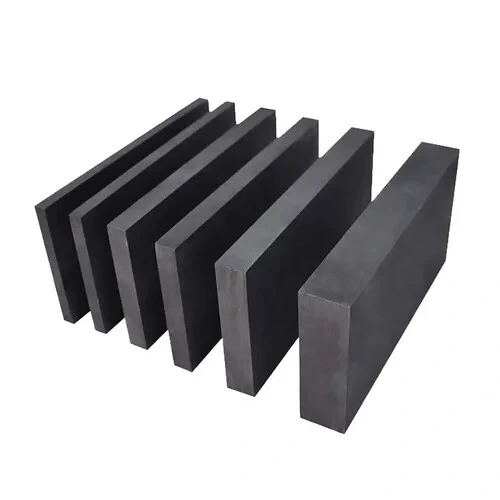

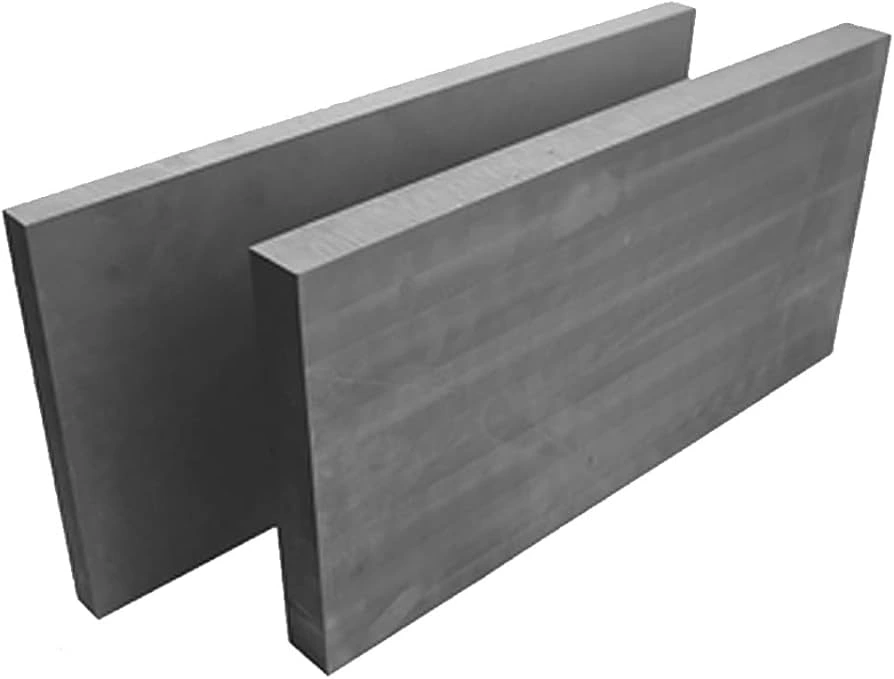

Graphite plate
- Excellent electrical conductivity
- High temperature resistance
- Resistant to acid and alkali corrosion
- Easy to process
Share to:
High-Density Graphite Plate for Tough Environments
Haoxing is one of the most trusted graphite plate suppliers and manufacturers that focus on producing high-density graphite plates used in various sectors. The graphite plates produced by us have been designed for tough conditions with high temperatures. They can be used in the metallurgy industry, chemical industry, and electrochemical industry. Choosing the right graphite plate supplier is crucial for ensuring the reliability and efficiency of your operations. Our carbon graphite plate products are made from high-quality petroleum coke, offering excellent electrical conductivity, high temperature resistance, and exceptional resistance to acid and alkali corrosion. Whether you need a standard graphite plate or a custom-machined component, our advanced manufacturing capabilities guarantee precision and durability.
Key Features
High density and strength
Low porosity
Ablation resistance
Core Properties
Excellent Electrical Conductivity
Our carbon graphite plate products have excellent electrical conductivity, making them well-suited to be used as electrodes and conductive elements in electrochemical processes.
Heat Resistance
Our graphite plates are capable of withstanding extreme heat without any damage to their structure or performance; thus, they can be used in metallurgy and resistance furnaces.
Stability Against Chemical Reagents
Ourgraphite plates are extremely stable in terms of being resistant to acids, alkalis, and organic solvents, allowing them to function effectively in corrosive environments.
High Density & High Strength
Developed using innovative technology, our graphite plates are characterized by high density, compressive strength, and flexural strength, increasing their durability.
Low Porosity
Low porosity of our graphite plates is achieved due to our innovative technology, which improves their performance in terms of gas and liquid resistance.
Machinability
Graphite plates provided by us are easily machinable in the sense that they can be easily cut, milled, drilled, and turned.
Ablation Resistance
Due to their high strength, our graphite platesare ablation-resistant.
Working Principle of Graphite Plates
The efficiency of the graphite plate comes from the fact that it has a distinct atomic arrangement. The graphite plate is made up of layers of carbon atoms that are arranged in a hexagonal pattern. These are some of the attributes of the graphite plate due to its atomic arrangement:
Manufacturing Process
As a professional graphite plate supplier, we maintain strict control over our production process to ensure the highest quality.
Raw Material Selection
We begin with high-quality petroleum coke and coal tar pitch, which are carefully selected to meet our stringent quality standards for producing a superior carbon graphite plate.
Mixing and Molding
The raw materials are mixed, crushed, and then molded into plate shapes using extrusion, vibration molding, or isostatic pressing techniques.
Baking
The formed “green” plates are baked at very high temperature levels so that the binder is carbonized and gives the graphite plate its first strength.
Graphitization
The baked plates are then subjected to extremely high temperatures (as high as 3000℃) through the use of a graphitization furnace. During this stage, the amorphous carbon is converted into crystalline graphite.
Precision Machining
The graphitized plates are finally machined accurately through the use of CNC machines.
Why Should You Choose the Graphite PlatesProvided by Haoxing?
The graphite plates supplied by us are produced using high-purity material components, thus making them durable and efficient.
The graphite plates we supply are produced from high-purity materials, making them durable and efficient.
Our company specializes in manufacturing customized graphite plates for your processes according to your exact specifications.
We have a highly advanced manufacturing plant that allows us to produce high-quality carbon graphite plate products.
Our team of experts is available to help you select the right grade and specification of graphite plate for your application.
Customization Services
As a leading graphite plate supplier, we understand that one size does not fit all. We offer comprehensive customization services for our graphite plates:
Dimensions
Graphite plates may be fabricated in an extensive variety of dimensions, including length, width, and thickness.
Shapes
Other than regular rectangular or square graphite plates, we can fabricate graphite plates in different shapes and profiles as per your designs.
Grades
We offer different grades of graphite to optimize for conductivity, strength, or purity, ensuring you get the perfect carbon graphite plate for your needs.
Applications of Graphite Plates
Our graphite plates are versatile components used in various high-tech industries.
● Metallurgical Industry: It is used for furnace linings, heating elements, and other applications in metallurgical and resistance furnaces.
● Chemical Industry: It is used in reactors, heat exchangers, and other devices that require resistance to acid and alkali corrosion.
● Electrochemical Industry: It is used in electrodes and plates for electrochemical reactions.
● Mechanical Molds: Used to create molds for sintering and casting due to their high-temperature stability and ease of machining.
● General Manufacturing: Used for processing irregularly shaped graphite parts and other custom components.
Technical Parameters of Graphite Heating Elements
The specifications of graphite heating elements can be customized according to furnace design and customer requirements.
| Parameter | Specification |
|---|---|
| Material | High Purity Graphite |
| Density | 1.78 g/cm³ |
| Resistivity | 13-14 μΩm |
| Flexural Strength | 38 MPA |
| Compressive Strength | 86 MPA |
| Ash Content | 37 ppm |
| Porosity | 18% |
| Hardness | 53 HSD |
| Customization | Available (Length, Width, Thickness, Shape) |
Note: Specifications are typical values. Values may vary slightly depending on the specific grade and size of the graphite plate.
FAQ
Q1: Do you have the capacity to manufacture graphite plates in any size?
A: Yes, since we are a professional graphite plate supplier,we specialize in customizing graphite plates to be in varied dimensions in terms of length, width, and thickness according to your drawings or samples.
Q2: What is the maximum temperature at which your graphite plates can operate?
A: The high-purity graphite plates manufactured by us can operate in temperatures of up to 3000℃ when there is no presence of an oxidizing agent. However, in the presence of an oxidizing agent such as oxygen, the temperature limit is somewhat lower because of the oxidation process.
Q3: Why should I use carbon graphite plate instead of metal plates?
A: Because the carbon graphite plates are highly resistant to temperatures, stable towards acids and alkalis, and light in weight when compared to metals.
Q4: How do you ensure the quality of your graphite plates?
A: We have a strict quality control system in place. Every batch of graphite plates is tested for key properties like density, resistivity, and flexural strength before shipment to ensure they meet our high standards.
Q5: What kinds of graphite plates do you manufacture?
A: Our manufacturing capabilities include the production of various graphite plates, including isostatic, molded, extruded, and anti-oxidation impregnated varieties.
