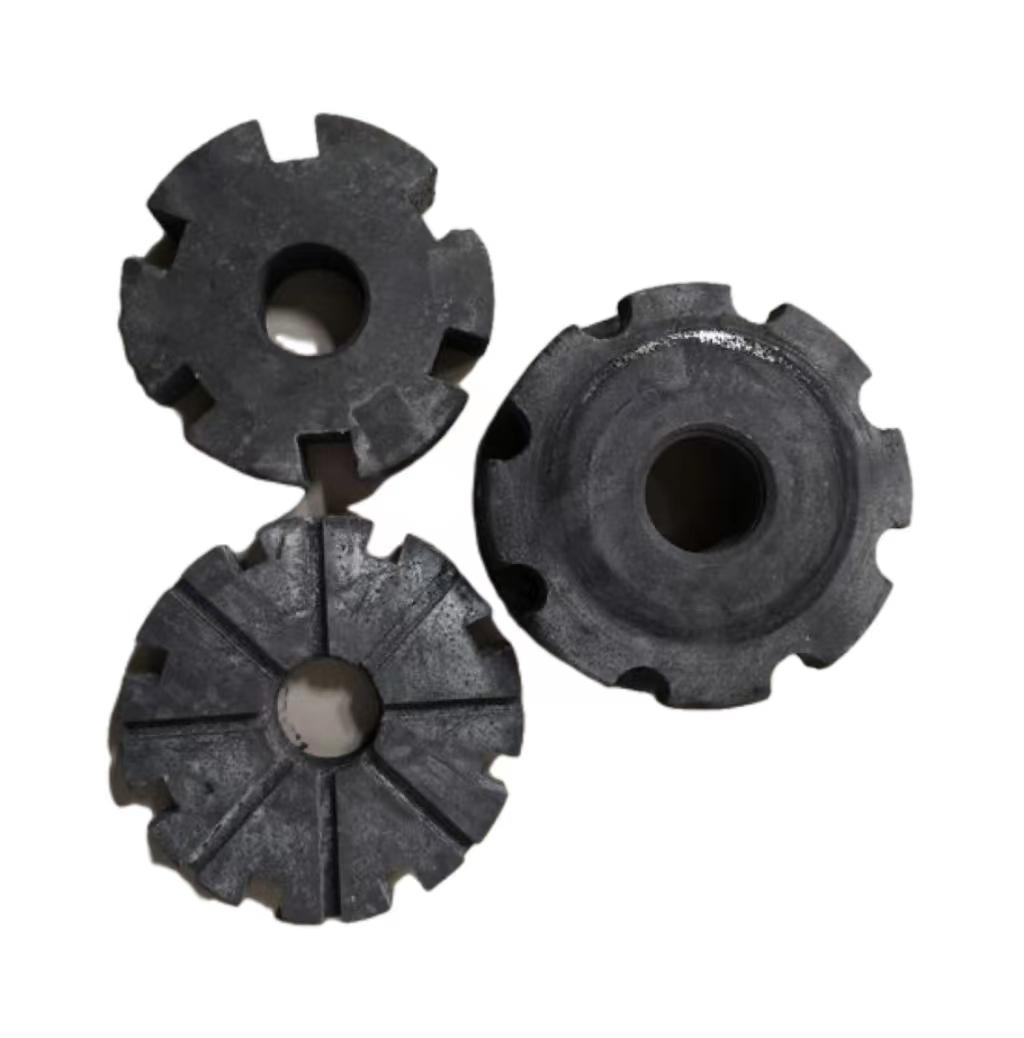

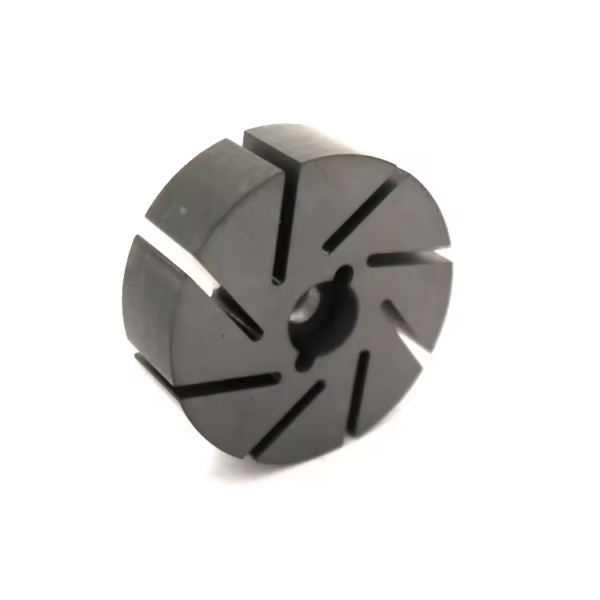

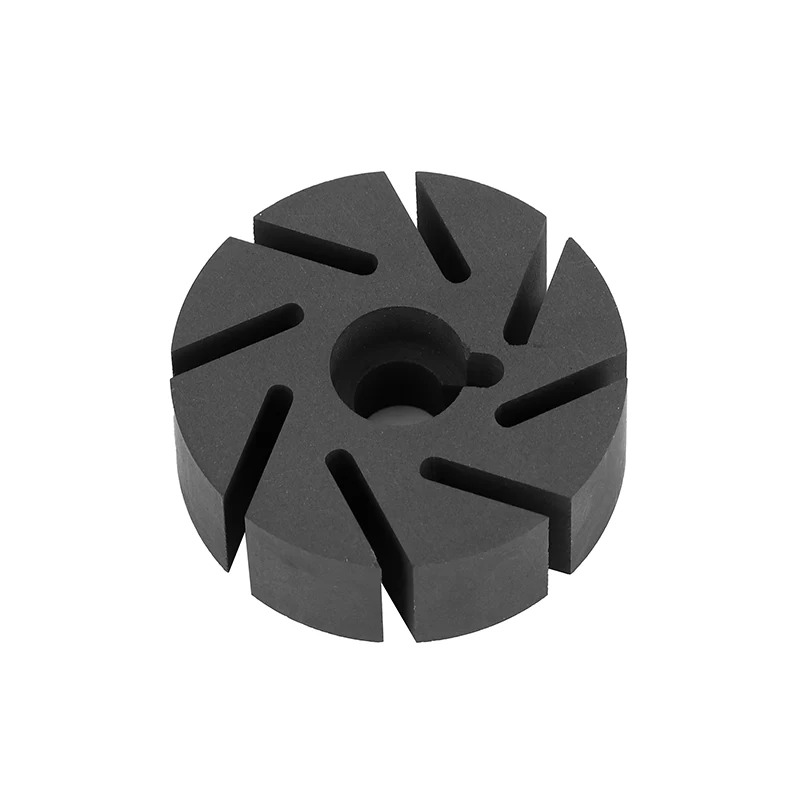

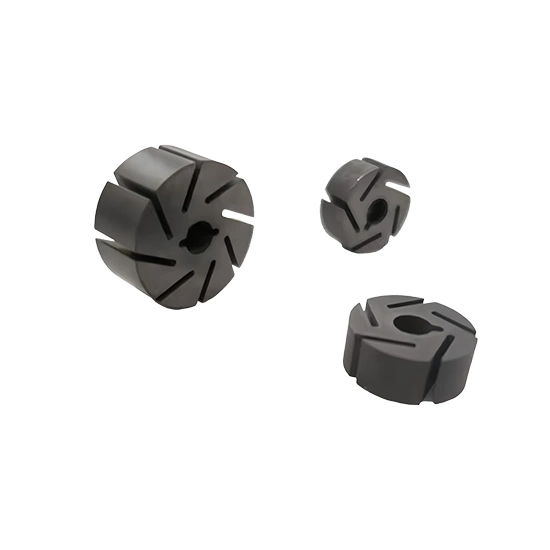

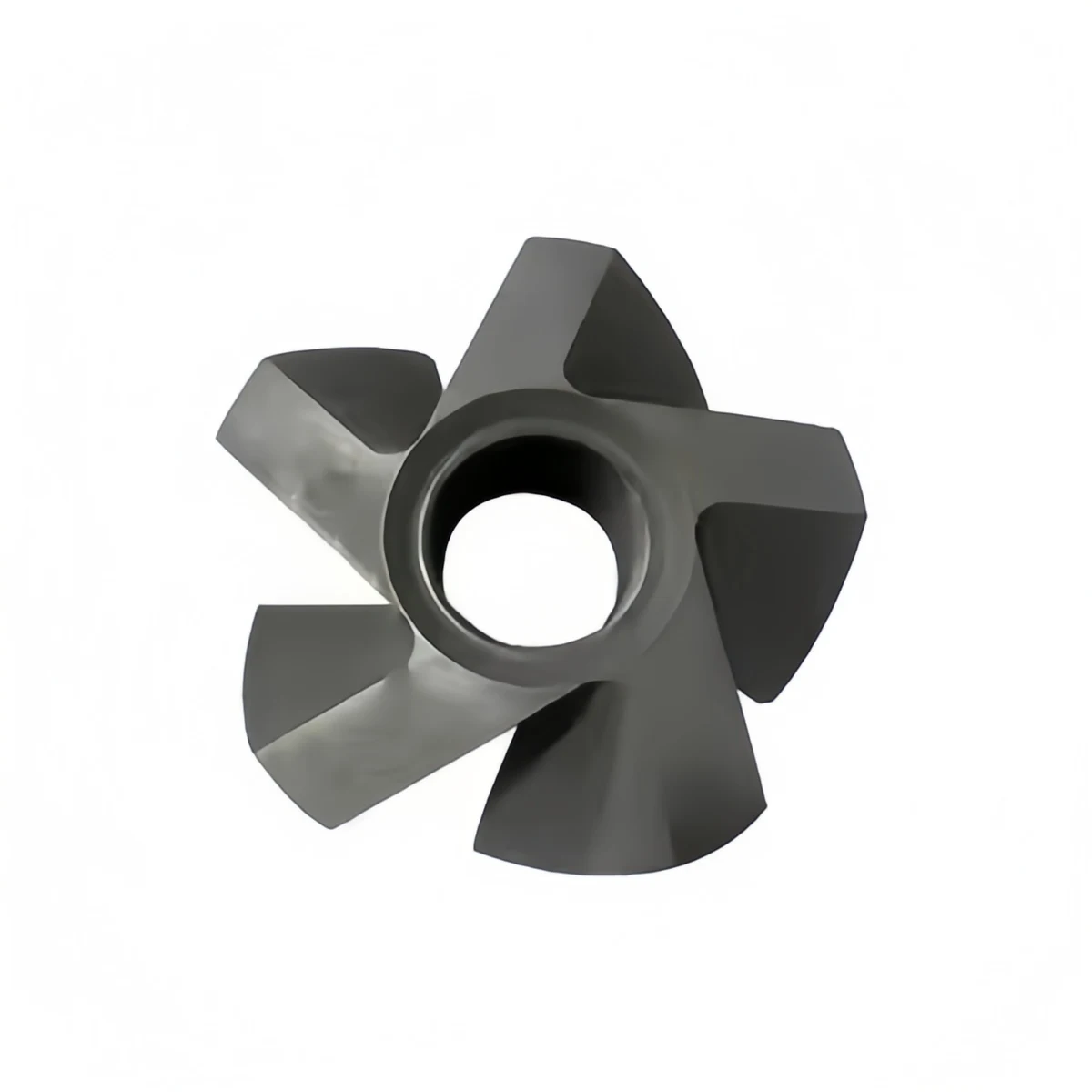

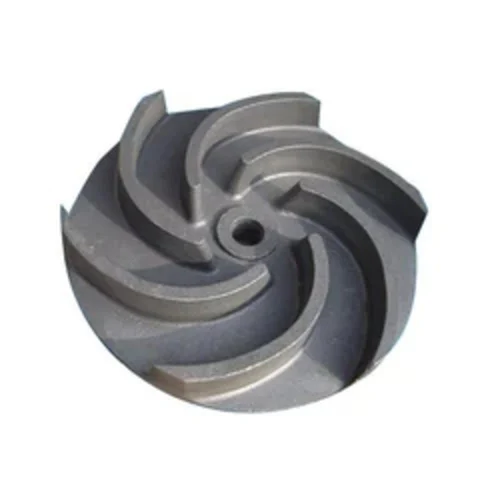

Graphite impeller
- Fast aluminum shaving discharge and large vortex;
- Water flow rate of 1t-10t/hour;
- Customization according to customer requirements.
Share to:

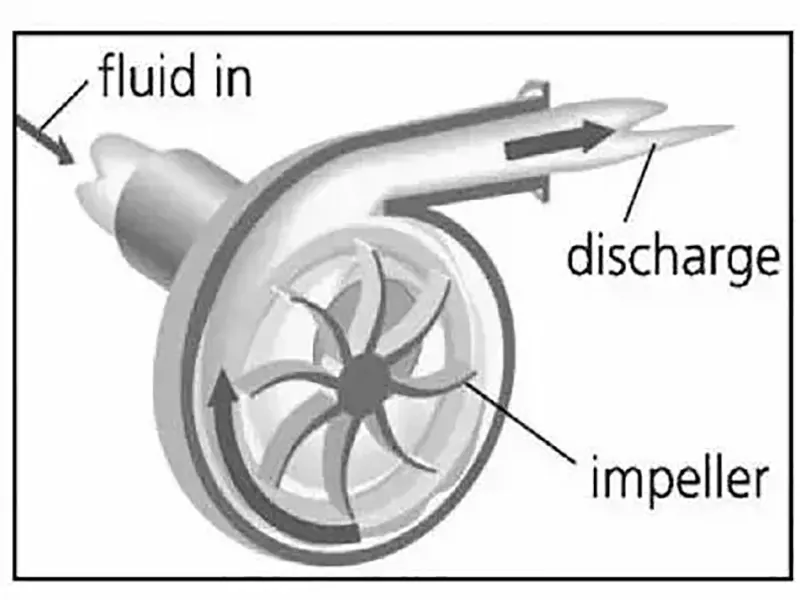

Working Principle
Utilizing the corrosion resistance, lightweight, and self-lubricating properties of graphite, it is used as a rotating component in pump bodies and agitators. The rotation of the blades achieves liquid transport, agitation, or circulation. Simultaneously, relying on the chemical stability of graphite, it operates safely in acidic, alkaline, and corrosive media without contaminating the medium or being corroded.
Core Performance Advantages
1.Extremely strong corrosion resistance, resistant to acids, alkalis, and organic solvents, suitable for harsh chemical environments.
2.Good self-lubricating properties, low friction, less prone to jamming, and low wear.
3.Excellent thermal conductivity, rapidly dissipating heat and preventing localized overheating.
4.Low density and light weight, reducing motor load and improving energy efficiency.
5.High temperature resistance and thermal shock resistance, less prone to cracking and deformation under sudden temperature changes.
6.Clean and pollution-free, does not react with the medium, and does not produce impurities.
7.High processing precision, meeting the assembly requirements of precision fluid equipment.

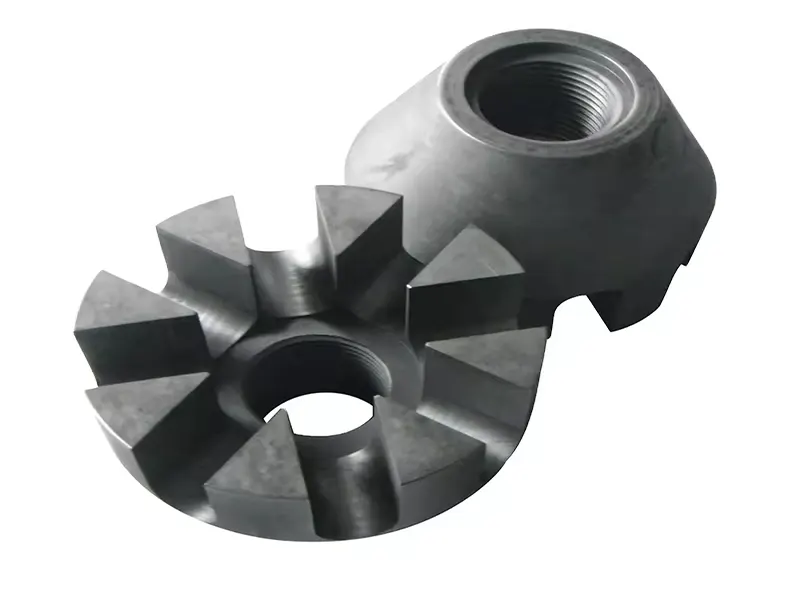

Graphite Impeller for Efficient Aluminum Melt Processing
Product Features of Graphite Impeller
The graphite impeller is one of the essential parts made of graphite used in aluminum smelting and metal processing systems. This part is characterized by high-stability stirring performance in high-temperature environments along with high chemical and mechanical stability.
Produced using quality graphite materials, the graphite impeller has good thermal conductivity, low porosity, and high thermal shock resistance. All these factors positively affect the efficiency of molten metal processing and contribute to process stability.
Key Features
- High-temperature resistance
- Stable performance under continuous operation
- Good thermal conductivity for efficient heat transfer
- Strong corrosion resistance against molten metals
- Customized designs according to equipment requirements
The tested graphite material possesses good physical properties such as high density, low ash content, and high resistance to compression, which makes it appropriate for industrial use.
Working Principle of Graphite Impeller
Graphite Impeller Operation
A graphite impeller used in aluminum refining and melting operations works on the principle of rotating within the molten metal to achieve homogeneous mixing. The rotational motion ensures that refining compounds are mixed homogeneously and also achieves good interaction between molten metals and refining substances. The graphite impeller retains its structural soundness due to the high thermal stability properties of graphite.
The working process includes:
- The impeller is made to rotate at a regulated speed within the molten metal.
- Rotation causes stirring action and promotes metal circulation.
- Gas or refining agents are evenly dispersed throughout the molten metal.
Efficiently filters out impurities and undesirable components, ensuring purity.
Manufacturing Process of Graphite Impeller
Advanced Graphite Processing Technology
The production quality of a graphite impeller depends on material selection, forming technology, machining accuracy, and surface treatment.
The manufacturing process generally includes:
Selection of high-quality graphite depends on the needs of the particular application. Density, strength, thermal conductivity, and ash content of the material affect the performance of products.
Graphite blocks are processed through molding, pressing, and heat treatment procedures to achieve stable internal structures.
Advanced CNC machining technology is used to manufacture impeller blades, connection structures, and dimensions according to customer drawings.
Each graphite impeller undergoes inspection procedures to verify dimensional accuracy and material performance before delivery.
Why Choose Our Graphite Impeller?
A reliable graphite impeller requires excellent material performance and precise manufacturing capability. Haoxing focuses on providing graphite components suitable for high-temperature industrial applications.
- High Temperature Performance
The graphite materials exhibit stability in extreme temperatures, which makes them fit for aluminum melting and metal treatment situations.
- Thermal Conductivity
The tested graphite material provides good thermal conductivity, helping improve heat transfer efficiency during industrial operations.
- Strong Mechanical Strength
With an anti-compression strength of 100 MPa, the graphite material provides reliable structural stability during operation.
- Low Impurity Content
Low ash content helps reduce contamination risks during molten metal processing. The tested material ash value is 260 ppm.
Technical Parameters of Graphite Impeller
The actual specifications of a graphite impeller can be customized according to equipment design and application requirements.
| Parameter | Value |
|---|---|
| Material | Graphite |
| Volume Density | 1.82 g/cm³ |
| Average Particle Size | 35 μm |
| Hardness | HRC 80 |
| Permeability | 0.54 Cm²/s |
| Thermal Conductivity | 90 Kc/mh/℃ |
| Ash Content | 260 ppm |
| Compressive Strength | 100 MPa |
The above data is based on product material testing results. Specific dimensions, connection methods, and operating conditions should be confirmed according to customer requirements.
Applications of Graphite Impeller
Where Is a Graphite Impeller Used?
The graphite impeller is widely used in industries requiring molten metal treatment and high-temperature processing.
Aluminum Melting Industry
In aluminum melting furnaces, graphite impellers help improve melt quality by supporting effective stirring and refining processes.
Metal Casting Industry
Graphite components are used in casting systems where high-temperature resistance and chemical stability are required.
Non-Ferrous Metal Processing
The corrosion resistance and thermal performance of graphite make it suitable for various non-ferrous metal applications.
Customized Graphite Impeller Services
Different industrial equipment requires different designs of graphite impellers. Haoxing provides customization services based on customer drawings and application conditions.
Customization options include:
- Impeller size and dimensions
- Blade structure design
- Connection methods
- Graphite material grades
- Machining accuracy requirements
Through professional graphite processing capability, customers can obtain suitable graphite components for specific industrial applications.
Quality Control of Graphite Impeller
Quality control is an important part of graphite impeller production. Material properties and processing accuracy directly affect service life and operating stability.
Inspection procedures include:
- Material performance testing
- Dimension measurement
- Surface quality inspection
- Finished product verification
The quality inspection report attached proves that the tested graphite material satisfied all the standards and passed the test.
FAQ
Q1: What is a graphite impeller used for?
A graphite impeller is mainly used for stirring and refining molten metals, especially in aluminum melting and casting applications.
Q2: Why should a graphite impeller be used?
Because graphite has good thermal stability and thermal conductivity.
Q3: Can the graphite impeller be customized?
Yes. The design, size, structure, and machining criteria may be customized based on the requirements of the equipment.
Q4: What affects the service life of a graphite impeller?
Factors such as operating temperature, rotation speed, molten metal conditions, material quality, and maintenance processes may affect the service life.
Q5: What industries use graphite impellers?
Graphite impellers are commonly used in aluminum processing, metal casting, and non-ferrous metal industries.
