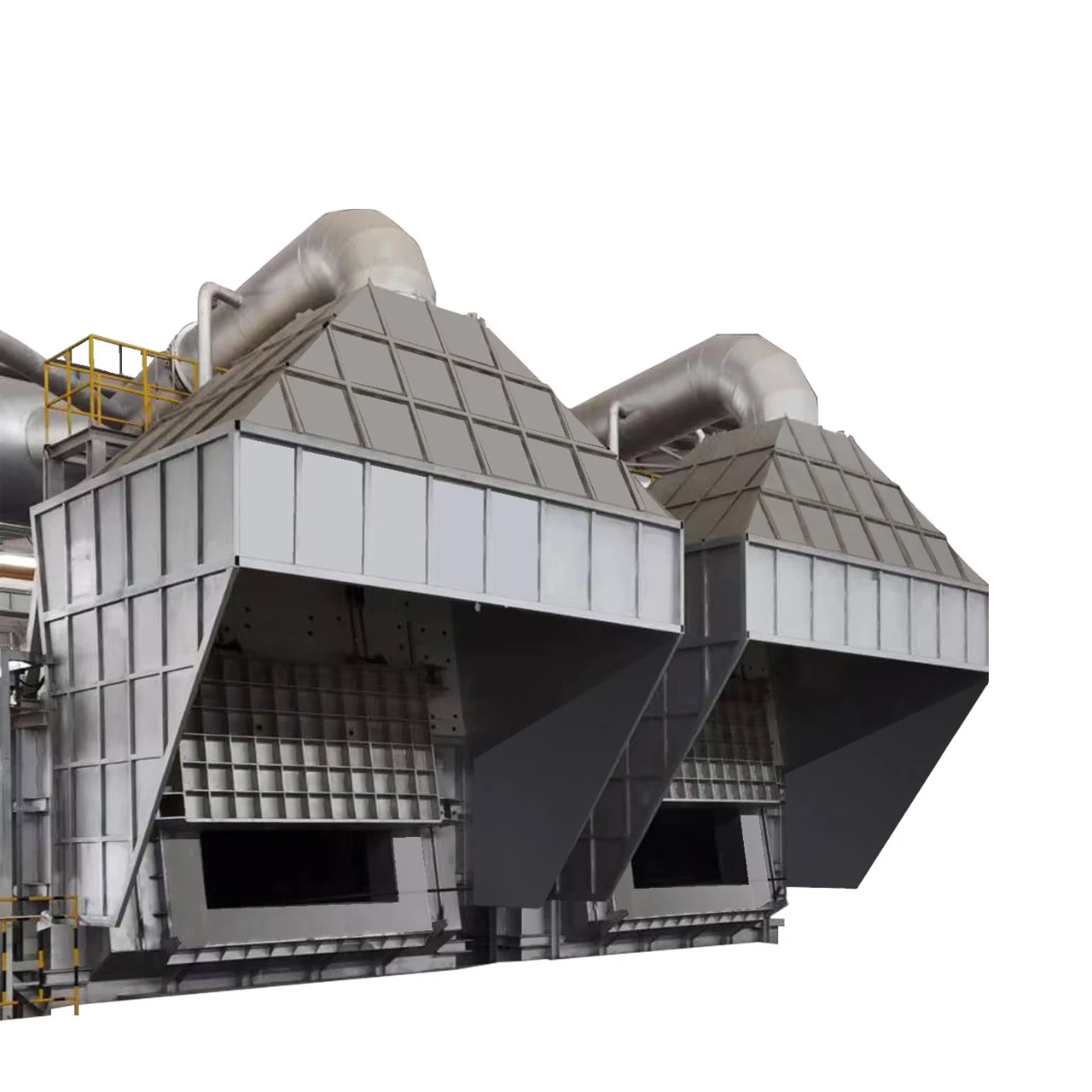

Aluminum Melting Furnace

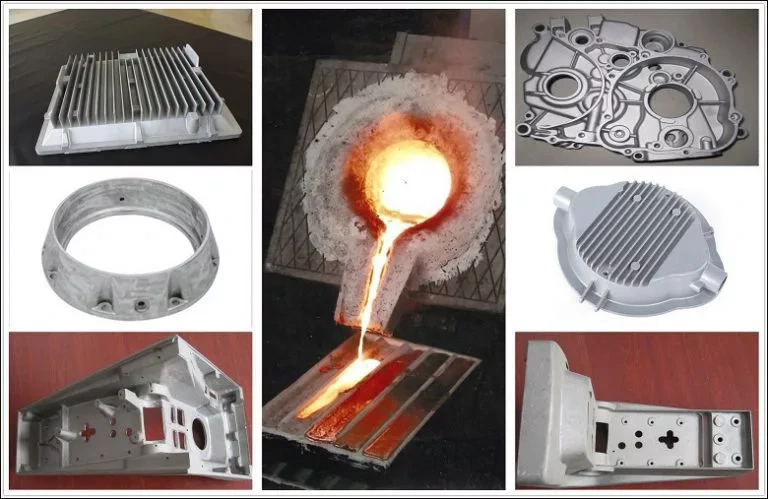

Aluminum Melting furnaces, generally using fuel-fired or gas-fired special static furnaces for low-cost continuous smelting and treatment processes, can upgrade low-grade scrap aluminum for the manufacture of casting, die-casting, rolling and master alloys Recycled aluminum ingots.
Alloy furnace: The purpose of advanced waste aluminum pretreatment technology is to realize the mechanization and automation of waste aluminum sorting, to remove metal impurities and non-metallic impurities to the greatest extent, and to make waste aluminum effectively press alloys. Classification and sorting of components, which can reduce the difficulty of removing impurities and adjusting components in the smelting process, and comprehensively utilize the alloy components in scrap aluminum.
Homogenizing furnace for melting and casting: Control the alloy composition of aluminum ingots by controlling the alloy composition of aluminum ingots. Quality. Adopting an advanced proportional heating temperature control system, the temperature difference is small, which completely eliminates the casting adaptability and composition segregation of the aluminum rod, so that the plasticity and strength of the alloy are greatly improved.
Overview
| Place of Origin | Foshan Guangdong, China |
| Condition | New |
| Type | Induction Furnace |
| Usage | Melting Furnace |
| Warranty of core components | 1 Year |
| Core Components | PLC, Bearing, Motor |
| Voltage | 380v |
| Power (kW) | 80 |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Applicable Industries | Aluminum ingot and billet Manufacturing Plant |
| After-sales Service Provided | Free spare parts, Online support |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Available after we set office there |
| Certification | CE |
| Supply Ability | 25 Sets per Year |
| Packaging Details | export packing |
| Port | Guangzhou |
Regenerative Aluminum Ingot Melting Furnace
Product information (take 15T furnace as example )
Main technical parameters
| No | Item | 15T rectangular melting furnace |
| 1 | Max. volume | 15T +10% |
| 2 | Rated aluminium liquid pouring amount | 15T |
| 3 | Melting pool depth (to the furnace door) | 650+100 mm |
| 4 | Furnace door working mode | Chain transmission, electric lifting, deadweight and compression |
| 5 | Furnace door size | 2000×1000 mm |
| 6 | Furnace chamber rated working temperature | ≤1100℃ |
| 7 | Furnace wall temperature increase | ≤65℃ |
| 8 | Burner type | Heat accumulating type CT300+300 |
| 9 | Furnace natural gas pressure | 0.008-0.02 Mpa adjustable |
| 10 | Max. Gas consumption | 350Nm3/h |
| 11 | Melting rate gas consumption/cube/ton (raw material is 95% above waste aluminium) | 65 cube below |
| 12 | Smoke temperature | ≤200℃ (melting) |
Furnace lining and shell
| Part | Material specifications | 15T rectangular melting furnace |
| Thickness (mm) | ||
| Furnace wall (melting pool, below the slag line) | Non-stick aluminium castable material (BZL-86) | 250 |
| Impervious castable material (Ketai NN) | 102 | |
| Light insulating brick (NG-0.8) | 180 | |
| Aluminum silicate fiber cotton (1260 ℃) | 50 | |
| Steel plate (Q-235) | 8 | |
| Total thickness | 580 | |
| Furnace wall (melting pool, above the slag line) | Grade 1 clay brick (LZ-55) | 250 |
| Light insulating brick (NG-0.8) | 280 | |
| Aluminum silicate fiber cotton (1260 ℃) | 50 | |
| Steel plate (Q-235) | 8 | |
| Total thickness | 580 | |
| Furnace bottom and the furnace door slope | Non-stick aluminium castable material (BZL-86) | 250 |
| Impervious castable material (Ketai NN) | 99 | |
| Light insulating brick (NG-0.8) | 201 | |
| Steel plate (Q-235) | 10 | |
| Total thickness | 550 | |
| Furnace top (flat top) | Hanging brick + high strength low cement castable material (KSTJ-70) | 200 |
| Thermal insulation cotton | 40 | |
| Impervious castable material (Ketai QJ-1.0) | 100 | |
| Total thickness | 390 | |
| Furnace door | High strength low cement castable material (KSTJ-70) | 200 |
| Aluminum silicate fiber cotton | 80 | |
| Steel plate (Q-235) | 10 | |
| Reinforced frame | 110 | |
| Total thickness | 550 | |
| Furnace bottom frame | 16* double channel steel and 10mm steel panel | |
| Furnace body frame | 16* double channel steel and 8mm steel panel | |
| Furnace top frame | #25 I-steel and #10 I-steel for well character frame | |
Burning system
This furnace group adopts heat accumulating burning system, an advanced technology in the field of low nitrogen oxide emission and high efficiency combustion. The burning system PLC is automatical, with perfect interlocking and alarm functions. The main flame of aluminum melting furnace adopts the manual control mode of large and small fire, good energy saving effect and realize the intelligent management.
| Design changing-over period | 10-120s for setting |
| Air preheating temperature | 600~800℃ |
| Maximum allowable temperature of flue gas emission | 250℃ |
| Normal working flue gas emission temperature | 100~200℃ |
| Heat storage medium | ø25mm high alumina ball, alumina content ≥ 92% |
| Amount of heat storage per medium | 1000-1200 kg |
Furnace door and opening and closing system
1. Adopt the appropriate size of furnace door: convenient for forklift to feed and charge slag. Also avoiding the furnace overheated caused by too big door and too quick heat radiation when open.
2. Lifting: sprocket, chain and counterweight barrel are equipped. The counterweight barrels are lifted by electric to enable simple and reliable operation.
3. Compaction: adopt self-weight compaction, save stroke switch, improve the reliability of furnace door.
4. The furnace door counterweight bucket is provided with a guide chute to ensure that the counterweight bucket does not shake when the furnace door is up and down.
5. A slag guide plate is arranged in the lower part of the furnace door to make the aluminum slag enter the slag hopper smoothly and prevent the high temperature aluminum slag from deforming the steel structure of the furnace body.
