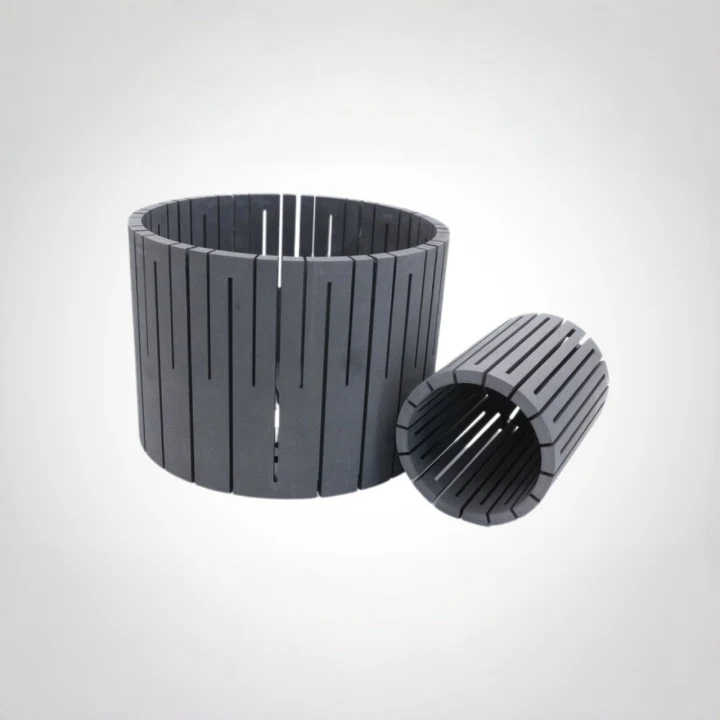

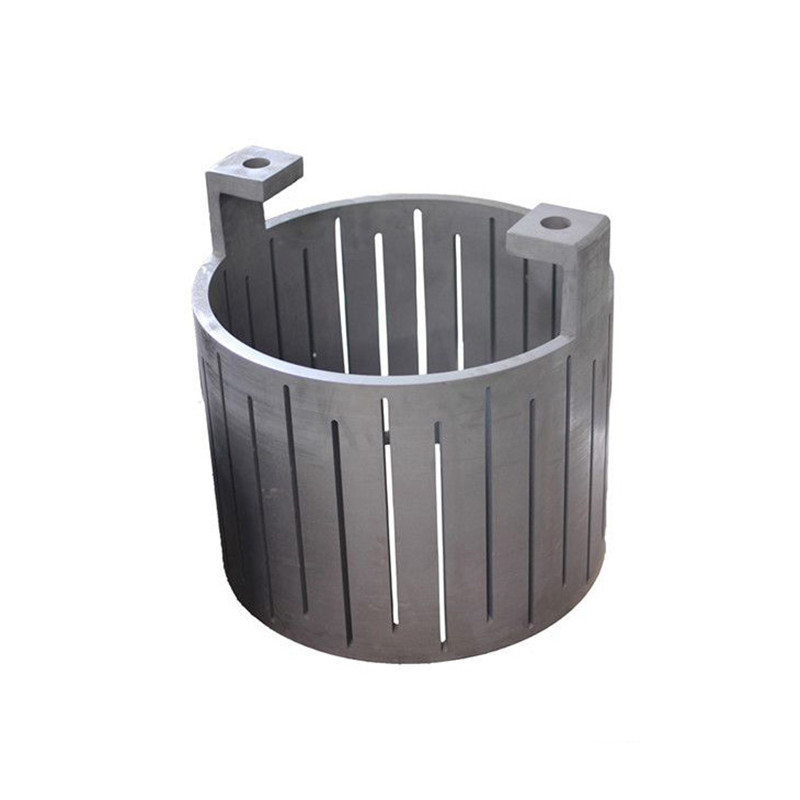

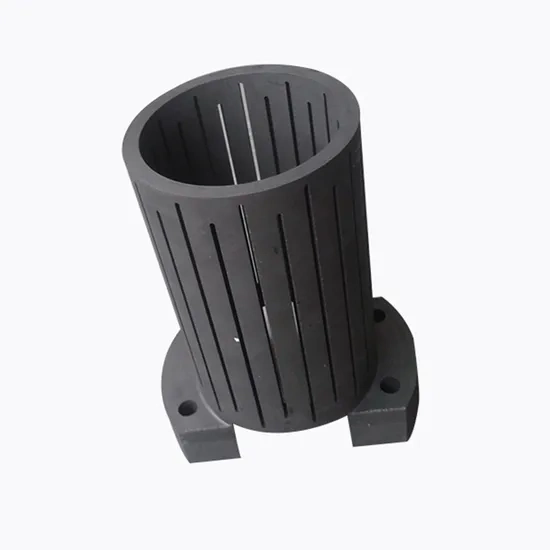

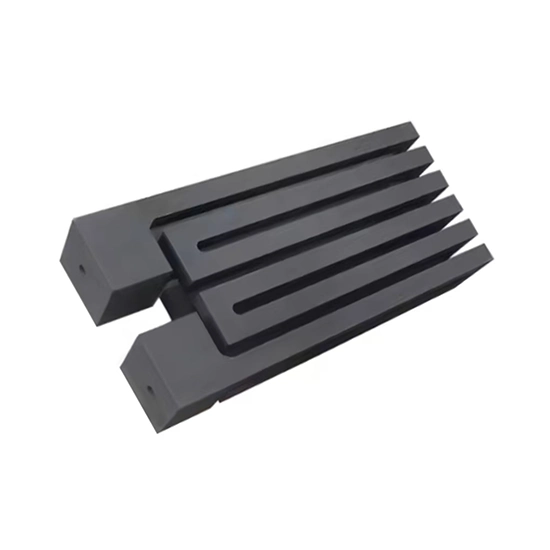

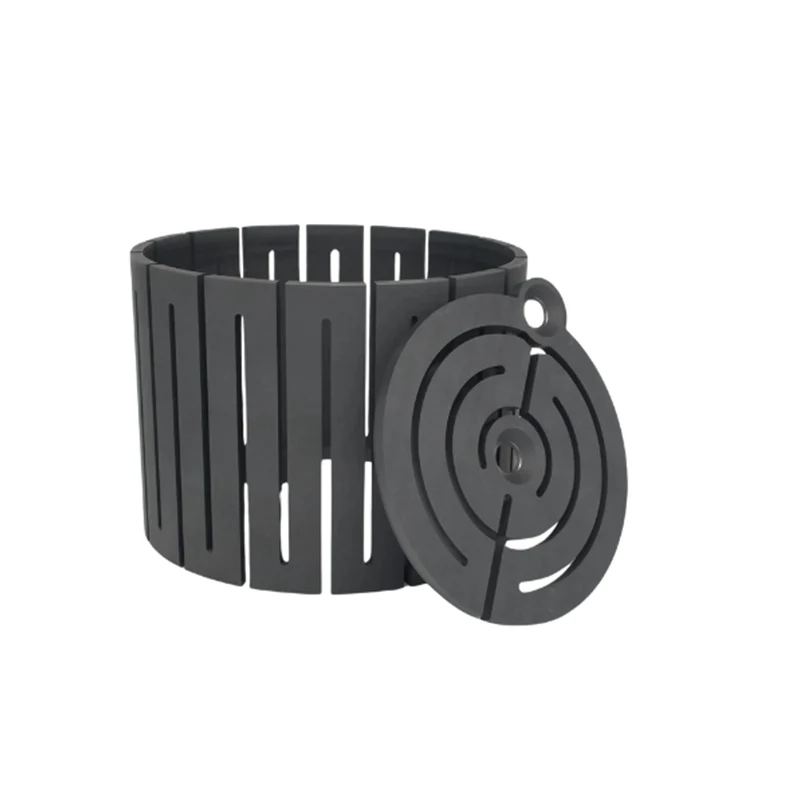

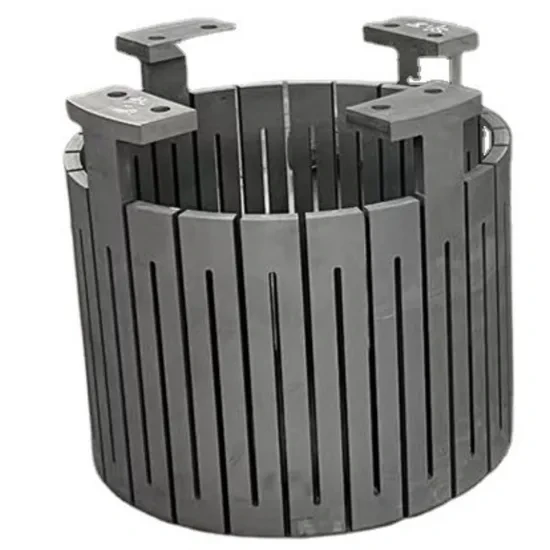

Graphite heating element
- Rapid heating
- High temperature resistance
- Uniform heat conduction
- Excellent oxidation resistance
- Excellent corrosion resistance
- Long service life
- Stable heating
Share to:
Graphite Heating Elements for High-Temperature Applications
Graphite heaters are vital heating elements widely used in high-temperature ovens and various heating systems. Made from premium graphite, graphite heating elements boast high conductivity, thermal stability, and resistance to harsh working conditions. The use of graphite heating elements is far better than that of other heating elements since they feature a quick heating rate, better resistance to high temperatures, and even heat distribution.
Key Features
- Rapid heating and high thermal efficiency
- High temperature resistance above 2000℃
- Uniform heat conduction and thermal radiation
- Excellent oxidation resistance
- Strong corrosion resistance
- High-temperature strength with low deformation
- Long service life and stable heating performance
A high-purity graphite heating element is most appropriate for situations where clean heating conditions are required because of the purity of the material and consistent properties.
Principle of Operation of Graphite Heating Elements
The principle of operation of graphite heating elements depends on the electrical properties of graphite. When the electric current flows through the graphite element, the electrical energy is transformed into heat energy by means of Joule heating.
- The electric current flows through the graphite.
- Resistance generates heat energy.
- Heat transfer occurs through radiation and conduction.
- The furnace reaches and sustains the necessary operating temperature.
Thanks to the high thermal conductivity of graphite, the graphite heating elements have the capability of quick heating and sustained temperature uniformity while functioning.
Manufacturing Process of Graphite Heating Elements
The quality of the graphite material that makes a high-purity graphite heating element is what will determine how efficiently the heating element performs.
Premium-grade graphites are chosen depending on their applications. Properties like purity, density, strength, and thermal performance have a great effect on heating effectiveness and durability.
The graphite material goes through molding, pressing, and high heat treatment to increase strength.
Highly advanced CNC machining technology is used to ensure that the dimensions and designs of each product are precise.
All graphite heater elements go through quality control tests to confirm their dimension, appearance, and performance.
Reasons for Selecting a High-Purity Graphite Heating Element
A high-purity graphite heating element is an outstanding performer in challenging high-temperature conditions because of its material characteristics, which are suitable for use in industrial furnaces.
Quick Heating and Efficient
Graphite is a highly conductive material, allowing fast conversion of electrical energy to heat energy by the heating element.
High Temperature Resistance
High-purity graphite heating elements perform effectively under very high temperatures, with operating temperatures exceeding 2000 ℃.
Uniform Heat Distribution
Graphite has very high thermal and radiation properties that can ensure a consistent temperature distribution as well as improve the heating process.
Chemical Stability
Graphite is resistant to many different kinds of chemicals and has very good chemical stability.
Long Service Life
Due to the excellent shock resistance of graphite to sudden changes in temperature, cracks are avoided, thus prolonging the life of the heating element.
Technical Parameters of Graphite Heating Elements
The specifications of graphite heating elements can be customized according to furnace design and customer requirements.
| Parameter | Specification Range (Customizable) |
|---|---|
| Material | High-purity graphite |
| Working Temperature | Up to 2000℃+ |
| Heating Method | Resistance heating |
| Heating Performance | Rapid heating and uniform temperature distribution |
| Thermal Performance | High thermal conductivity |
| Chemical Performance | Excellent corrosion resistance |
| Structure | Customized according to drawings |
Note: Specific dimensions, density, graphite purity, resistance value, and machining tolerance should be confirmed according to your furnace system and application requirements.
Industrial Applications of Graphite Heating Elements
As a result of their heat-resistant and steady performance features, graphite heating components have been applied in many industries for thermal process needs

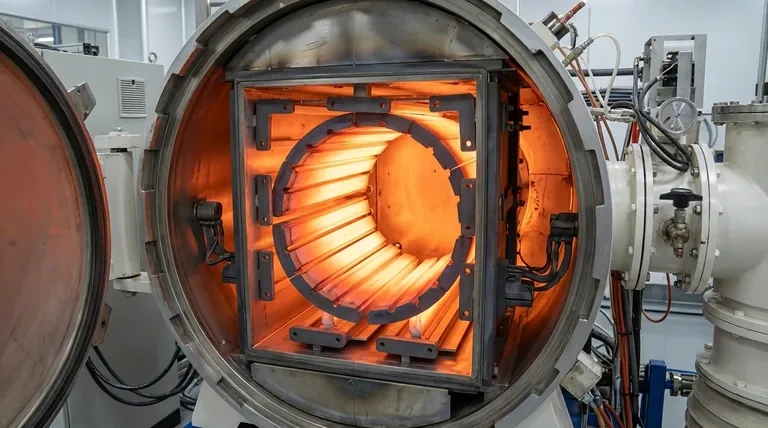

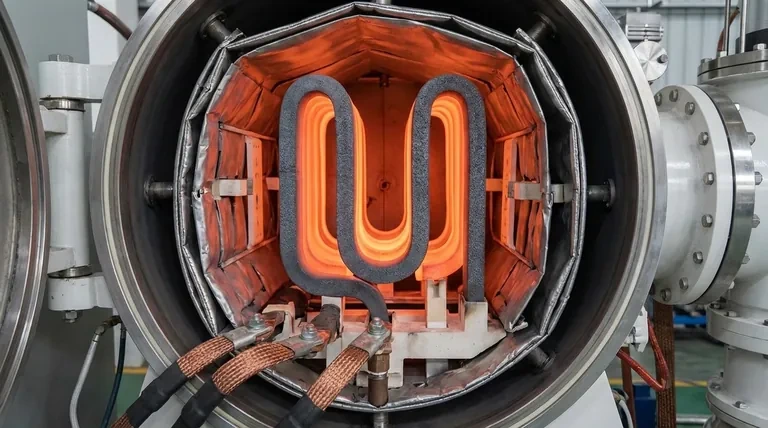

Vacuum Furnaces
With its stable performance, the vacuum furnace graphite heater effectively maintains the purity of the process atmosphere while ensuring the heating effect.
Semiconductor Manufacturing
A high-purity graphite heating element would be appropriate for semiconductor manufacturing purposes where temperature control and purity are key factors.
EcoMetallurgy Industry
Graphite heating elements are used in high-temperature metal processing and heat treatment equipment due to their excellent thermal resistance.
Laboratory and Research Equipment
Laboratory furnaces require accurate temperature control. Graphite heating elements provide efficient heating solutions for experimental applications.
Customized Graphite Heating Element Services
Different furnace structures require different heating component designs. Haoxing provides customized graphite heating elements according to customer drawings, equipment specifications, and application conditions.
Customization services include:
- Heating element dimensions
- Shape and structure design
- Electrical resistance adjustment
- Graphite material selection
- Machining precision requirements
Through professional graphite processing capabilities, customized heating solutions can be developed for different high-temperature applications.
Quality Advantages of Graphite Heating Elements
The quality of graphite heating elements directly affects furnace efficiency and production stability. High-quality graphite materials and precise manufacturing processes help ensure consistent heating performance.
Main performance advantages include:
- Stable electrical resistance
- Excellent thermal conductivity
- Strong thermal shock resistance
- Low deformation under high temperature
- Long operational lifespan
In applications that require strict material control, a high-purity graphite heating element can effectively reduce the risk of contamination.
FAQ
Q1: What are graphite heating elements used for?
Graphite heating elements are mainly used in high-temperature furnaces, vacuum furnaces, semiconductor equipment, metallurgy systems, and laboratory heating equipment.
Q2: Why use graphite instead of traditional heating elements?
Graphite offers superior heating performance, temperature resistance, thermal conductivity, and thermal shock resistance compared to many conventional materials.
Q3: What temperature can a high-purity graphite heating element reach?
A high-purity graphite heating element can typically work at temperatures above 2000℃ under suitable furnace conditions.
Q4: Can graphite heating elements be customized?
Yes. Dimensions, structure, resistivity, and grades of material can be tailor-made as per the customer’s equipment requirements.
Q5: How can the service life of graphite heating elements be improved?
Proper operation of furnaces, proper temperature control, and use of appropriate graphites will help to increase the service life.
