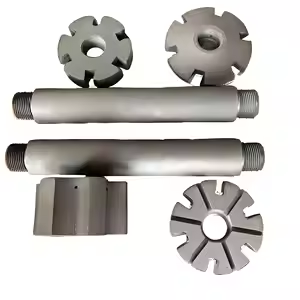

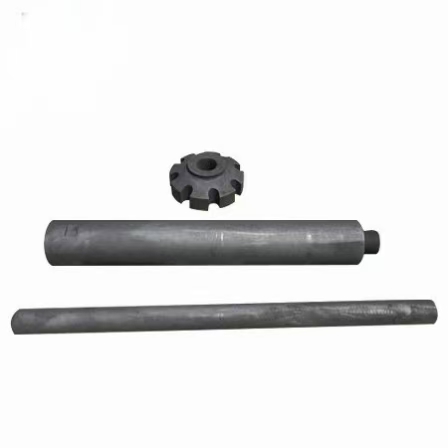

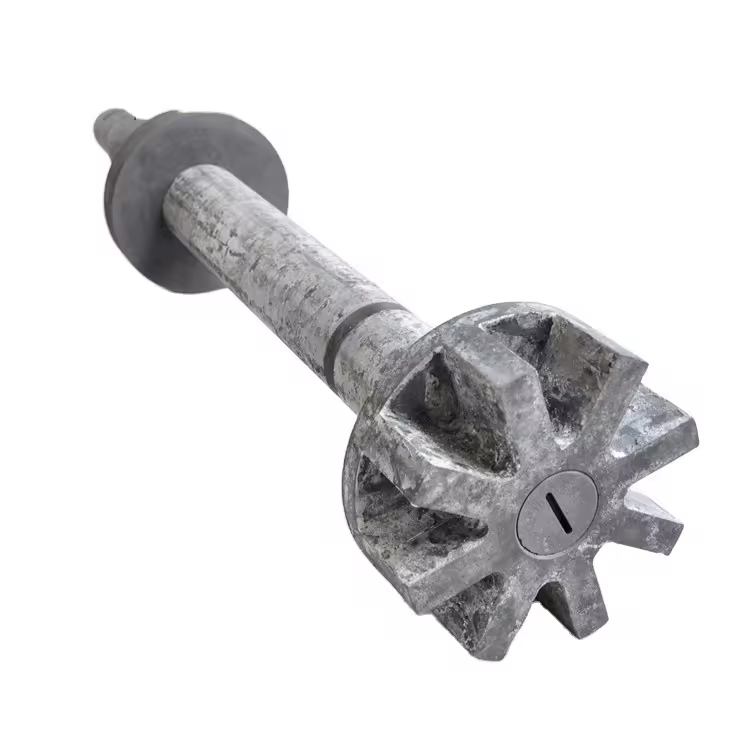

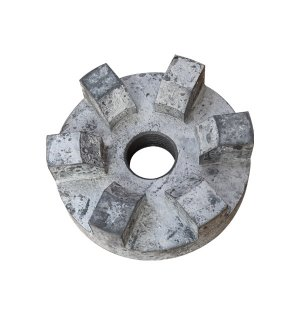

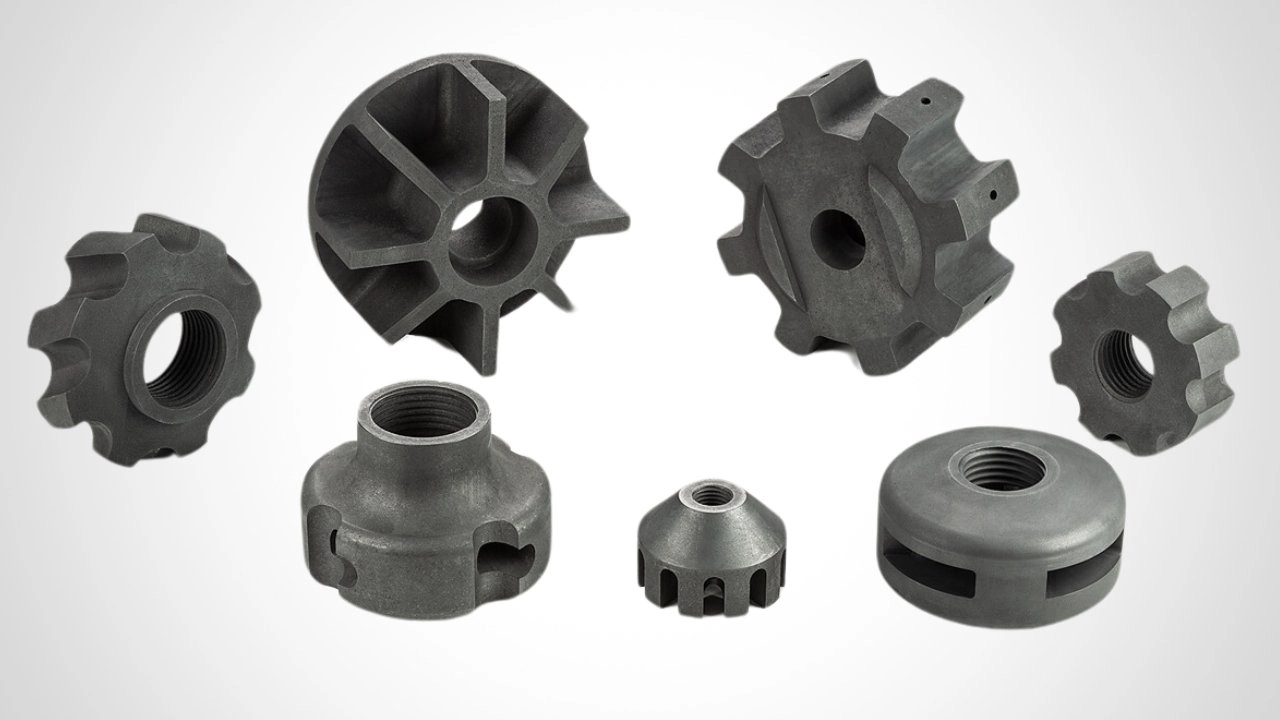

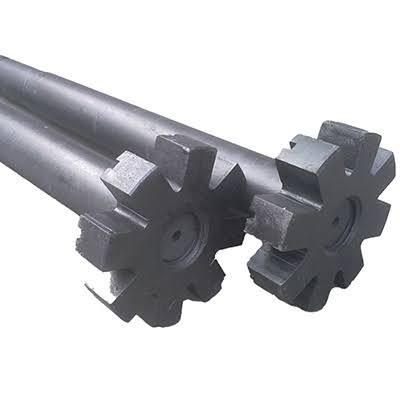

Antioxidant Graphite Rotor
Compared to carbon stone rotors or carbon graphite rotors with surface coatings, our company’s composite graphite degassing rotors offer the following advantages
- Service life increased by 4-5 times;
- Oxidation resistance increased by 6-8 times;
- Flexural strength increased by approximately 50%;
- Significantly improved resistance to aluminum corrosion.
Share to:

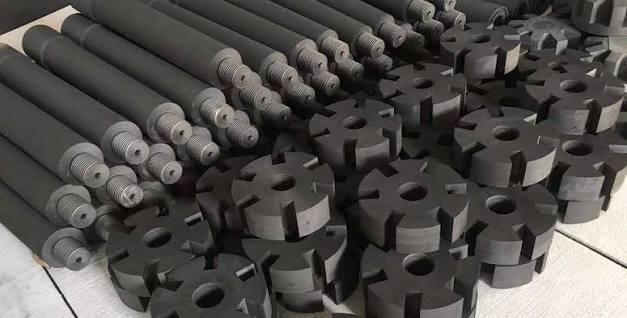

Haoxing Antioxidant Graphite Rotor

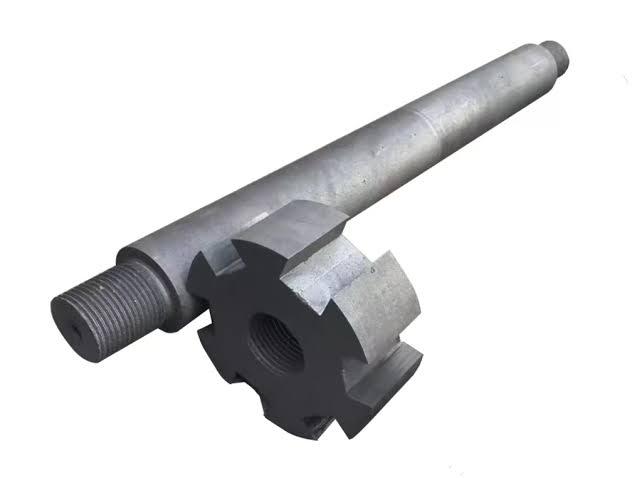

Manufactured from high-purity graphite material and impregnated with an antioxdant to block graphite pores, the antioxdant graphite rotor comprises the shaft and blades which are machined as one piece. The rotor is the consumable part that ensures degassing efficiency when applied for aluminum melt refining.
The graphite rotors contribute greatly in the process of working due to the fact that the gas injection and stirring are combined in the process.
When compared with regular carbon graphite, the composite graphite demonstrates improved properties regarding corrosion and oxidation, thus the dimension changes are minimized.
Working Principle of Graphite Rotors
Graphite rotors operate on the basis of establishing a controlled mixing regime in the aluminum melt. As a result of the rotation process, there is enhanced interaction between the refining gas and the melt, which in turn leads to better separation of impurities and dissolved gases.
Efficient Gas Dispersion
The special design of the blade creates an enhanced mixing action that ensures that the introduced gas forms well-dispersed bubbles. The enlarged interface created by bubbles increases the degassing rate.
Hydrogen and Inclusion Removal
Bubbles that are fine in size trap the hydrogen and oxides that are in the molten aluminum. As the bubbles float up to the top, the contaminants are removed from the metal.
Stable Refining Performance
Using oxidation-resistant treatments and composite graphite material, the rotor can sustain higher structural stability even in high temperatures and corrosive conditions, guaranteeing constant performance in refinement.
Manufacturing Process of Antioxidant Graphite Rotor
To ensure stable performance in aluminum melt refining, each antioxidant graphite rotor undergoes strict manufacturing procedures, including material selection, anti-oxidation treatment, precision machining, and final inspection.
High-Purity Graphite Selection
Good quality graphite materials are chosen based on the demands for density, strength, and oxidation resistance properties in order to perform well at high temperatures while handling aluminum.
Anti-Oxidation Treatment
An antioxidant material is added to the pores of graphite in order to lower the oxidation, increase the resistance to corrosion, and extend the service life of the rotor.
Precision Machining
Rotor shaft and blades are CNC-machined as a single piece, which gives an exact dimension, proper balance, and strength to the degassing machine.
Quality Inspection
Finished graphite rotors undergo inspections for dimensions, surface quality, and structural consistency before shipment, ensuring reliable operation in aluminum refining systems.
Product Parameters
High-purity graphite is used in the making of the antioxidant graphite rotor, which is designed specifically for aluminum melt degassing. The size and properties of the graphite material may vary depending on the refining process.
| Parameter | Specification |
|---|---|
| Rotor Outer Diameter | Φ100 mm - Φ300 mm |
| Inner Diameter | Customized according to equipment requirements |
| Shaft Length | 500 mm - 1500 mm |
| Working Temperature | Up to 1100℃ in molten aluminum |
| Bulk Density | 1.75 - 1.82 g/cm³ |
| Compressive Strength | 86 - 100 MPa |
| Flexural Strength | ≥38 MPa |
| Porosity | ≤18% |
| Machining Accuracy | ±0.05 mm |
| Material | High-purity graphite / composite graphite |
| Surface Treatment | Anti-oxidation impregnation |
| Gas Application | Argon and nitrogen |
Applications of Graphite Rotors
The graphite rotors are widely used in aluminum processing industries where efficient melt purification, hydrogen removal, and stable degassing performance are required.
Aluminum Casting
Used during aluminum melt treatment to remove dissolved hydrogen and oxide inclusions, helping improve the quality, strength, and consistency of cast products.
Aluminum Alloy Production
Suitable for aluminum alloy melting processes that require improved melt cleanliness, reduced casting defects, and enhanced material performance.
Foundries and Metal Processing Plants
Provides reliable degassing performance for continuous production environments, supporting stable aluminum refining operations and improving process efficiency.
Automotive and Industrial Aluminum Components
Applied in the production of aluminum components for automotive, machinery, and industrial applications where high-quality aluminum melts and consistent casting performance are required.
Customized Antioxidant Graphite Rotor Solutions
Different aluminum refining systems may require specific rotor sizes, structures, and performance characteristics. Haoxing Graphite provides customized solutions based on customers’ application requirements.
• Customized rotor dimensions and blade designs
• Different graphite grades for various operating conditions
• Tailored anti-oxidation treatments
• OEM manufacturing based on customer-provided drawings or technical specifications.
With flexible manufacturing capabilities, customized antioxidant graphite rotor products can meet the needs of different aluminum melting and refining applications.
Why Choose Our Antioxidant Graphite Rotor
Excellent Oxidation Resistance
The anti-oxidation treatment process helps in reducing graphite oxidation at high temperatures, thus increasing the lifespan of the antioxidant graphite rotor.
Stable Degassing Efficiency
Optimized rotor structure ensures efficient gas dispersion and melt circulation, improving hydrogen and oxide inclusion removal during aluminum melt refining.
Precision Manufacturing Capability
The shaft and the blades have been engineered as a single unit for precision accuracy of dimensions, balanced rotation, and strength.
Consistent Product Quality
Strict material selection and quality inspection processes ensure stable performance and reliable service life of our graphite rotors in industrial aluminum refining applications.
FAQ
What is an antioxidant graphite rotor used for?
An antioxidant graphite rotor is mainly used for aluminum melt refining. It introduces inert gases such as argon or nitrogen to remove hydrogen and oxide inclusions from molten aluminum.
What are the advantages of antioxidant graphite rotors?
Compared with ordinary graphite products, antioxidant graphite rotors provide better oxidation resistance, corrosion resistance, and dimensional stability during high-temperature operation.
What gases can be used with graphite rotors?
Argon and nitrogen are commonly used gases for aluminum melt degassing applications.
What is the average lifespan of a graphite rotor?
This would be determined by several considerations, including the operating temperature, the speed of rotation, and the type of aluminum alloy.
Is the graphite rotor customizable?
Yes, rotor size, blades, graphite materials, and anti-oxidation treatment can be customized depending on the customer’s equipment needs.
How do I select the appropriate graphite rotor?
Factors to take into account include compatibility of the refining equipment, aluminum processing conditions, degassing performance, and longevity.
