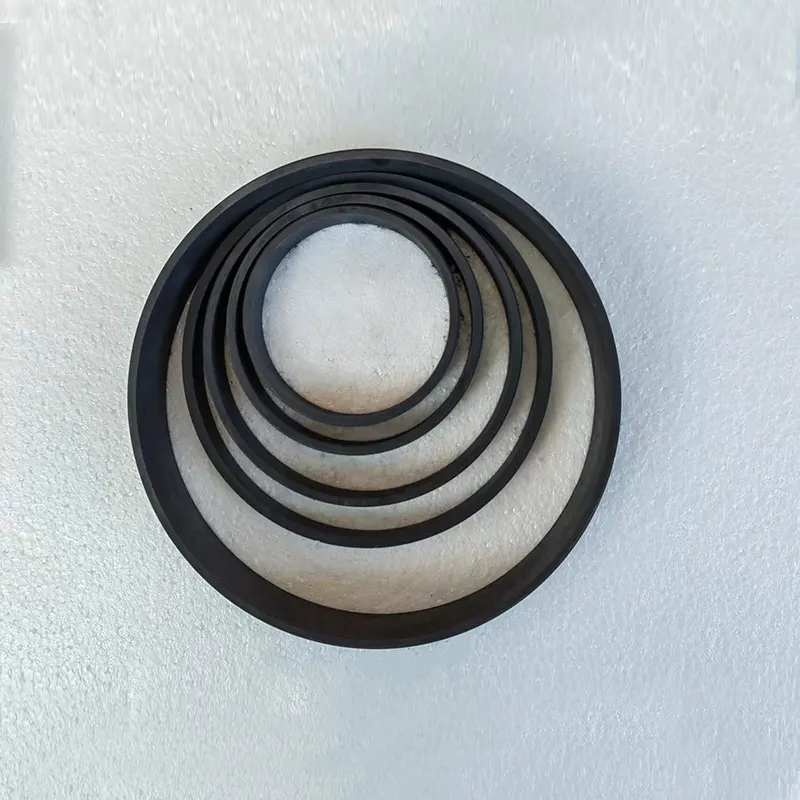

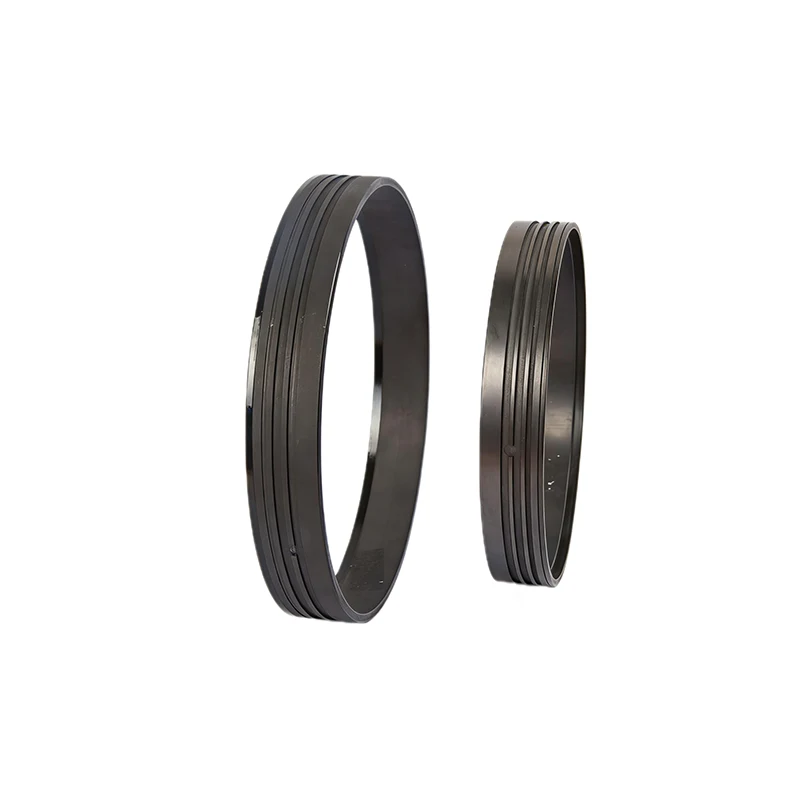

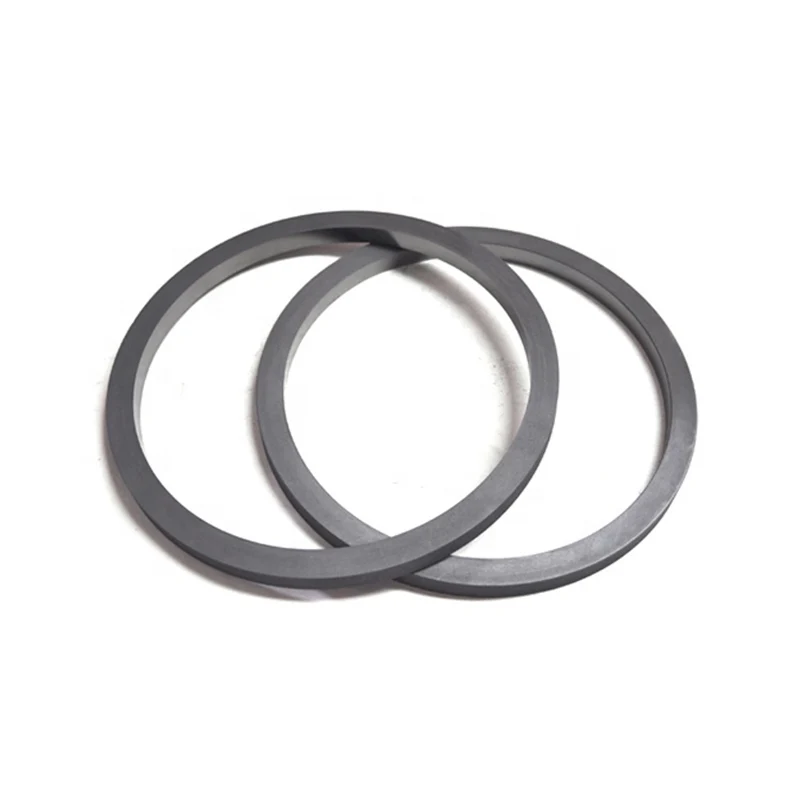

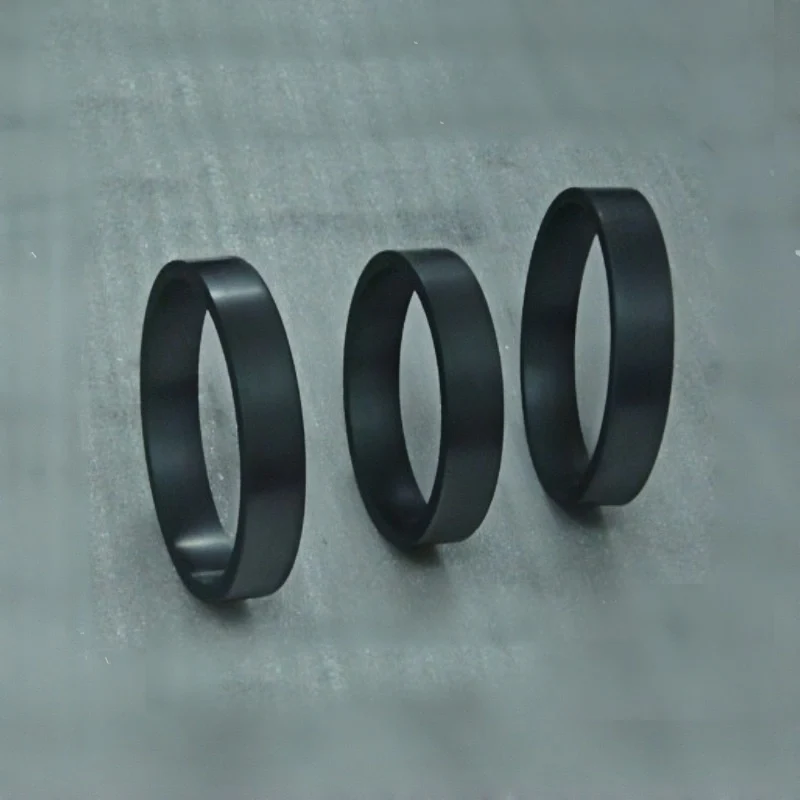

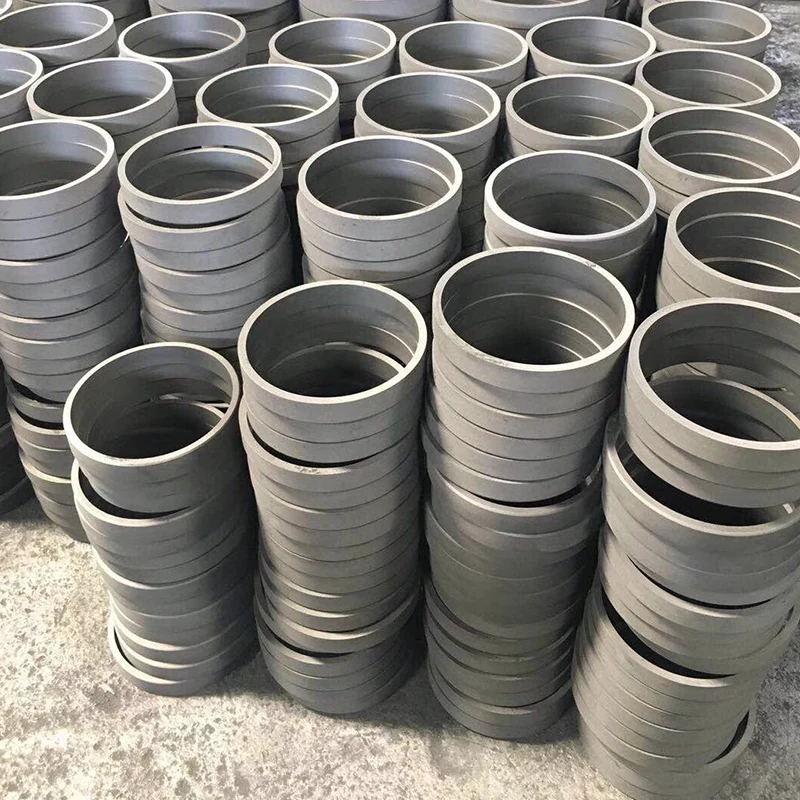

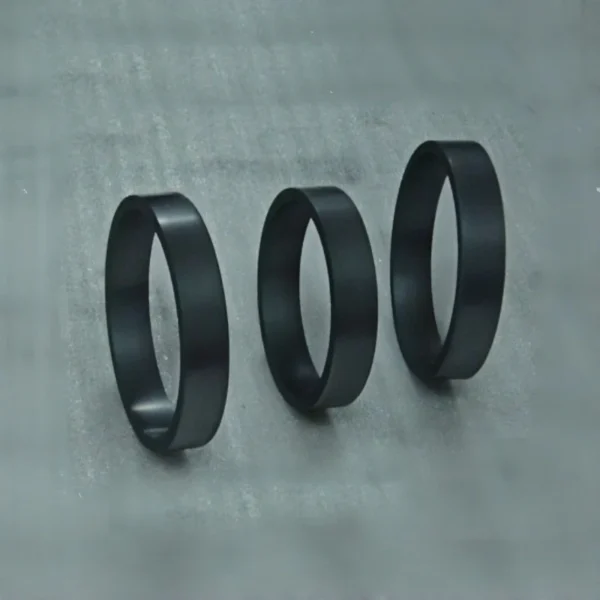

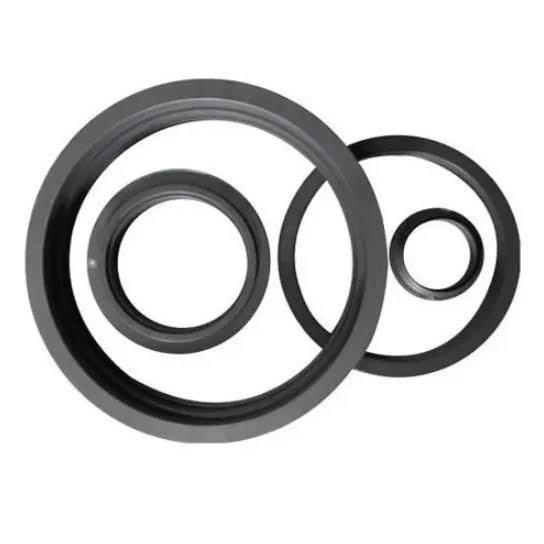

Oil-gas Lubricated Graphite Ring
- Uniform thermal conductivity
- Self-lubricating and wear-resistant
- High temperature resistance and shock resistance
- Chemically stable
- Smooth molding finish
- Sealed flow control
Share to:

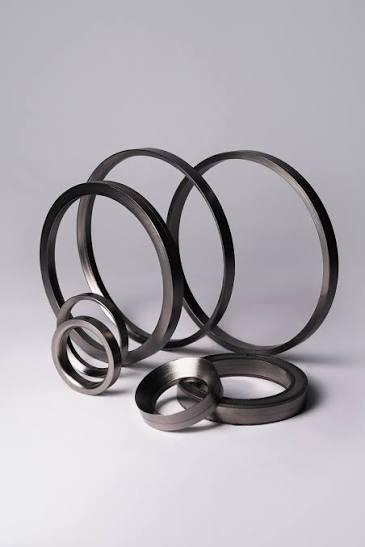

Oil-Gas Lubricated Graphite Ring for High-Performance Sealing Applications
Haoxing manufactures an oil-gas lubricated graphite ring that performs excellently for sealing purposes in industries where there is need for minimum friction, stability and durability. The graphite ring is made of quality graphite materials and hence, it is very effective in self-lubrication, heat stability and wearing resistance. Being a good graphite sealing ring, the product can be tailored to fit the particular needs of different types of equipment used in industrial sealing processes.
Working Principle
With the help of the properties of graphite including low friction, lubrication, heat resistance, and sealing, the graphite sealing ring functions to seal, reduce friction, and provide heat protection in rotating and reciprocating parts. The oil-gas lubricated graphite ring assists in reducing wear and leaks due to its consistent lubrication and sealing capabilities.
Product Features of Oil-Gas Lubricated Graphite Ring
Self-Lubricating and Low Friction Performance
The layers that make up graphite act as a source of natural lubrication, which decreases friction between the contacting surfaces. This results in extended equipment life.
Excellent Thermal Stability
The graphite ring maintains stable performance in high-temperature environments. It offers good resistance to thermal deformation and is suitable for continuous industrial operation.
Reliable Sealing Performance
With accurate dimensions and stable material properties, the graphite ring helps reduce leakage and maintain consistent sealing performance under demanding working conditions.
Precision Machining Capability
Haoxing uses advanced machining technology to produce graphite rings with accurate dimensions and smooth surfaces. Tailored designs are available to accommodate various equipment needs.
Manufacturing Process of Graphite Sealing Ring
Material Selection
The high quality of graphite depends on the material selection depending on the conditions of operation, which include temperature, pressure, and friction.
Forming and Heat Treatment
Graphite materials undergo forming and heat treatment processes to improve density, strength, and structural stability before precision machining.
Precision Machining
CNC machining is applied to achieve accurate dimensions, smooth sealing surfaces, and customized structures according to customer requirements.
Quality Inspection
Finished products are inspected for dimensional accuracy, material consistency, and surface quality before delivery.
Technical Specifications of Oil-Gas Lubricated Graphite Ring
Designed for oil-gas lubrication systems and industrial sealing applications, Haoxing’s graphite rings are manufactured with high-quality graphite materials and precision machining processes. The following specifications represent typical product capabilities, and customized requirements are available according to different operating conditions.
| Parameter | Specification |
|---|---|
| Material | High Purity Graphite |
| Outer Diameter Range | 10 mm – 800 mm |
| Inner Diameter Range | 5 mm – 700 mm |
| Ring Thickness | 3 mm – 100 mm (Customized) |
| Working Temperature | Up to 500°C in air / Higher temperatures under protective atmosphere |
| Pressure Resistance | Up to 10 MPa (Depending on sealing structure and application conditions) |
| Density | 1.75 – 1.90 g/cm³ |
| Friction Coefficient | ≤ 0.15 (Typical value) |
| Machining Tolerance | Up to ±0.01 mm |
| Surface Finish | Customized according to sealing requirements |
Applications of Oil-Gas Lubricated Graphite Ring
Oil-gas lubricated graphite rings are very common among industrial sealing applications where low friction, wear, and reliability are essential. Its superior thermal stability and self-lubricating nature make it very useful in reducing leakage and ensuring reliable functioning in harsh operating conditions such as the oil and gas, mechanical, chemical, and high-temperature industry environments.
Typical applications include:
• Oil and gas equipment such as pumps, compressors, and valves
• Rotating machinery requiring low-friction sealing components
• Chemical processing systems exposed to demanding operating conditions
• High-temperature industrial equipment in energy and metallurgy fields
Customized Graphite Ring Manufacturing Services
Haoxing provides customized graphite ring manufacturing services to meet different equipment requirements and operating conditions. Based on customer drawings, samples, or technical specifications, the company can provide flexible solutions from material selection to precision machining and mass production.
Customization capabilities include:
• Custom dimensions such as outer diameter, inner diameter, and thickness are available.
• Different graphite material grades based on temperature and pressure requirements
• OEM manufacturing according to drawings or samples
• Quality inspection and production support for consistent product performance
Why Choose Haoxing for Oil-Gas Lubricated Graphite Ring
Based on professional knowledge and experience in the manufacture of graphite products, Haoxing can offer our clients a quality range of graphite seals that will ensure stable sealing results and long-term operation of your equipment.
Professional Graphite Manufacturing Capability
Graphite components are the specialty of Haoxing. The company has expertise in the fabrication of sealing rings, among other graphite parts. The advanced processing technology utilized guarantees consistency in the quality and performance of the graphite parts.
Precision Machining and Quality Control
With professional machining ability, Haoxing mainly emphasizes the exact dimensions, surface finishing, and uniformity of the product. Every graphite ring is produced using strict quality control measures to meet various sealing needs.
Flexible Customization Service
Haoxing supports customized graphite sealing ring solutions based on customer drawings, samples, and application conditions. Dimensions, graphite grades, and structural designs can be adjusted according to equipment requirements.
Reliable Support for Industrial Applications
Technical assistance is provided by Haoxing from the consultation stage right through to production and delivery of the goods. Haoxing collaborates very closely with their customers to create the appropriate seals for industrial environments.
FAQ
What is an oil-gas lubricated graphite ring used for?
An oil-gas lubricated graphite ring is designed for industrial sealing applications where low friction, stable operation, and wear resistance are required. It is commonly used in pumps, compressors, valves, rotating machinery, and other equipment that operates under demanding conditions.
What are the advantages of using a graphite sealing ring?
A graphite sealing ring offers excellent self-lubrication, high temperature resistance, and stable sealing performance. Its low friction characteristics help reduce wear between moving components, minimize leakage, and improve the service life of sealing systems.
Can Haoxing tailor graphite rings to meet the particular specifications?
Yes. Haoxing offers its customers tailored manufacturing of graphite rings depending on the requirements of their drawings, samples, and applications. The dimensions, grades, structures, and machining processes may be altered according to the various equipment specifications.
What information is required when ordering an oil-gas lubricated graphite ring?
To recommend a suitable graphite ring, customers should provide key information such as equipment type, operating temperature, pressure conditions, sealing dimensions, lubrication method, and application environment. These details help ensure the product meets actual operating requirements.
What materials are used in the manufacturing of Haoxing graphite rings?
High-quality graphite material is used to manufacture Haoxing graphite rings. Based on various parameters like temperature tolerance, wear resistance, and sealing capability, different grades of graphite material can be offered.
How does Haoxing ensure the quality of graphite sealing rings?
Haoxing controls product quality through material selection, precision machining, dimensional inspection, and production process management. Each graphite ring is manufactured according to strict quality requirements to ensure consistent performance and reliability.
