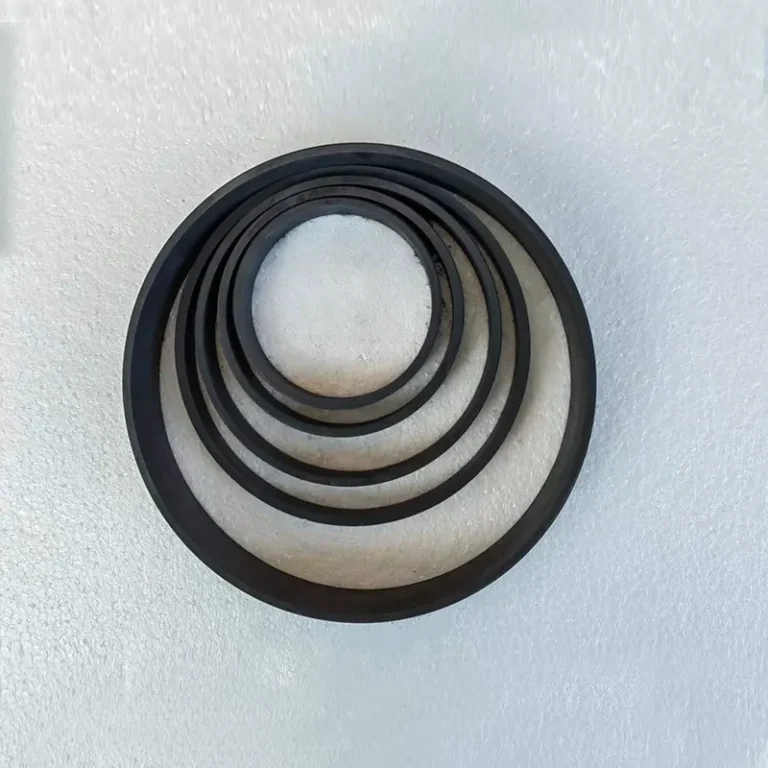

Hot-top cast graphite ring
- Uniform thermal conductivity
- Self-lubricating and wear-resistant
- High temperature resistance and shock resistance
- Chemically stable
- Smooth molding finish
- Sealed flow control
Share to:

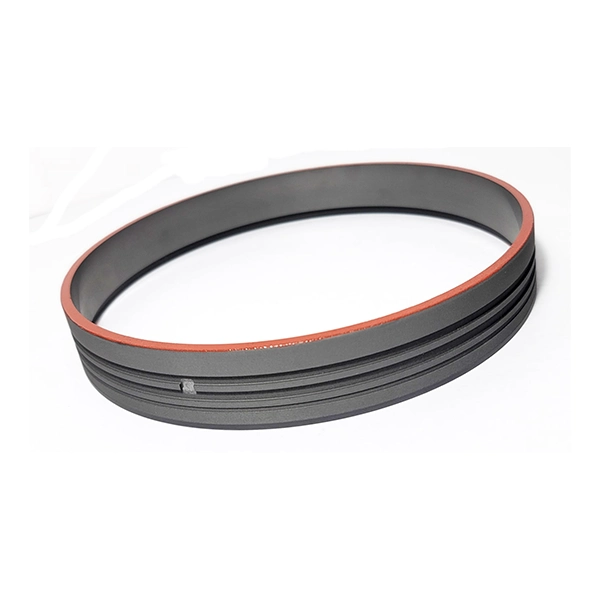

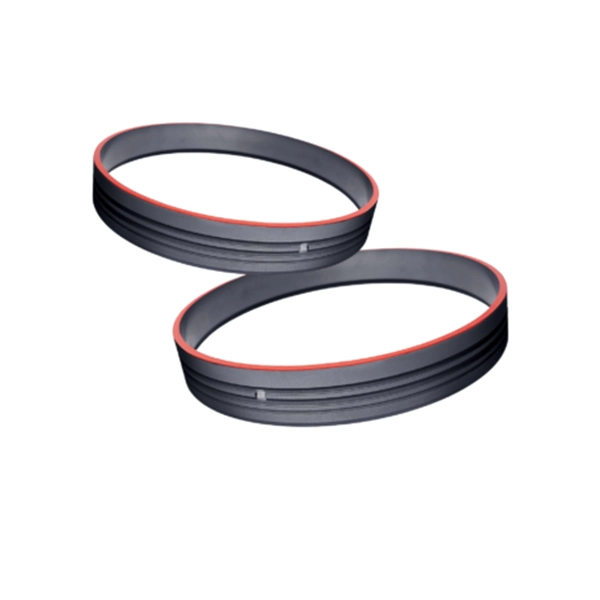

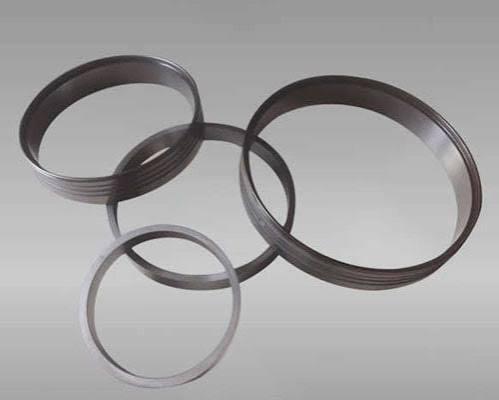

Hot-Top Cast Graphite Ring for Reliable Casting Performance
This hot-top cast graphite ring is made of isostatic graphite with high purity and is placed in the hot-top casting platform as well as on the top of the crystallizer. This product is one of the important components in aluminum and steel hot-top casting machines. It receives the molten metal through the distribution plate and makes a connection between the insulation zone and the water-cooled crystallization zone.
Working Principle of Hot-Top Cast Graphite Ring
The hot-top cast graphite ring works as a thermal control, sealing, and guiding component in the hot-top casting system. During the casting process, molten aluminum or steel flows from the distribution plate through the graphite ring into the water-cooled crystallizer.
The graphite material provides a controlled heat transfer process between the molten metal and the cooling area, and this is going to help achieve a consistent thermal gradient and solidification process. However, due to its non-wetting behavior and lubricating properties, it does not allow any molten metal to stick on the surface.
As a part of the sealing system, the graphite seal ring is also responsible for minimizing metal loss and turbulence, as well as insulating high-temperature molten metal and the copper sleeve.
Core Functions
Temperature Control and Insulation
The hot-top cast graphite ring allows for even heat transmission, guarantees a constant surface temperature of the molten metal, prevents early crust formation and provides an even start of solidification.
Anti-sticking and self-lubrication
Due to its excellent non-wetting properties, the graphite liner protects the surface from sticking to the molten aluminum or steel, thus preventing scratches.
Molten metal flow and sealing
The graphite seal ring is designed as reliable graphite sealing rings, allowing the regulation of molten metal flow and reducing turbulence and slag entrapment and sealing hot-top joints.
Buffer and insulation
It is used as insulation of high-temperature molten metal from direct contact with water-cooled copper sleeve.
Advantages
Manufactured using graphite of 99.5% purity and above and impregnated against oxidation, the hot-top cast graphite ring is able to perform reliably in harsh continuous casting conditions.
Excellent Thermal Shock Resistance
It withstands rapid temperature changes and high-temperature conditions, reducing the risk of cracking or spalling during continuous casting operations.
Strong Chemical Inertness
The graphite material does not react with molten aluminum or steel, helping prevent impurities from affecting billet quality.
Low Friction and Smooth Casting Performance
Its low coefficient of friction helps reduce defects such as cold shuts, scratches, and peeling on cast billets while improving casting stability.
High Machining Accuracy and Dimensional Stability
With precise machining capability, it is suitable for various round billet crystallizers ranging from φ50–160mm.
Easy Maintenance and Cost Efficiency
Controlled wear characteristics allow simple repair and replacement, helping reduce overall consumable costs.
Manufacturing Process of Hot-Top Cast Graphite Ring
Haoxing Graphite applies precision manufacturing processes to ensure reliable performance and dimensional accuracy for hot-top casting applications.
High-Purity Graphite Material Selection
High-quality isostatic graphite blocks are selected according to purity, density, and structural consistency requirements to ensure stable performance under high-temperature conditions.
Precision CNC Machining
Advanced CNC machining technology is used to achieve accurate dimensions, smooth surfaces, and tight tolerances required for different crystallizer systems.
Anti-Oxidation Treatment
The graphite ring undergoes anti-oxidation impregnation treatment to improve oxidation resistance and extend service life during continuous casting operations.
Quality Inspection
Each product is inspected for dimensional accuracy, surface quality, and structural consistency before shipment to ensure reliable installation and operation.
Technical Specifications of Hot-Top Cast Graphite Ring
| Item | Specification |
|---|---|
| Material | High-purity isostatic graphite |
| Graphite Purity | ≥99.5% |
| Application | Aluminum and steel hot-top casting |
| Installation Position | Hot-top platform / top of crystallizer |
| Compatible Billet Diameter | φ50–160mm |
| Surface Treatment | Anti-oxidation impregnation |
| Machining Process | CNC precision machining |
| Performance Features | Thermal shock resistance, low friction, chemical stability |
Applications of Hot-Top Cast Graphite Ring

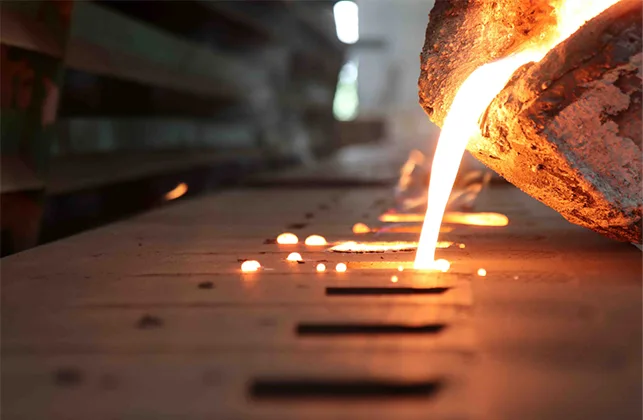

Hot-top cast graphite ring is one of the most commonly used materials for aluminum and steel casting applications, where temperature stability, flow of the molten metal, and proper sealing are essential.
Aluminum Billet Casting
This graphite ring is used for aluminum billet casting to ensure stable flow and solidification of the molten metal, thereby ensuring good surface quality of the billet.
Steel Hot-Top Casting
In steel casting applications, the graphite ring provides high-temperature resistance and reliable sealing performance to support stable casting operations.
Continuous Casting Systems
The graphite ring is suitable for continuous casting processes that require precise heat control, low friction, and long-term operation under high-temperature conditions.
Industrial Metal Processing Applications
It can be applied in various metal processing environments where high-purity graphite components are needed for thermal insulation, sealing, and molten metal handling.

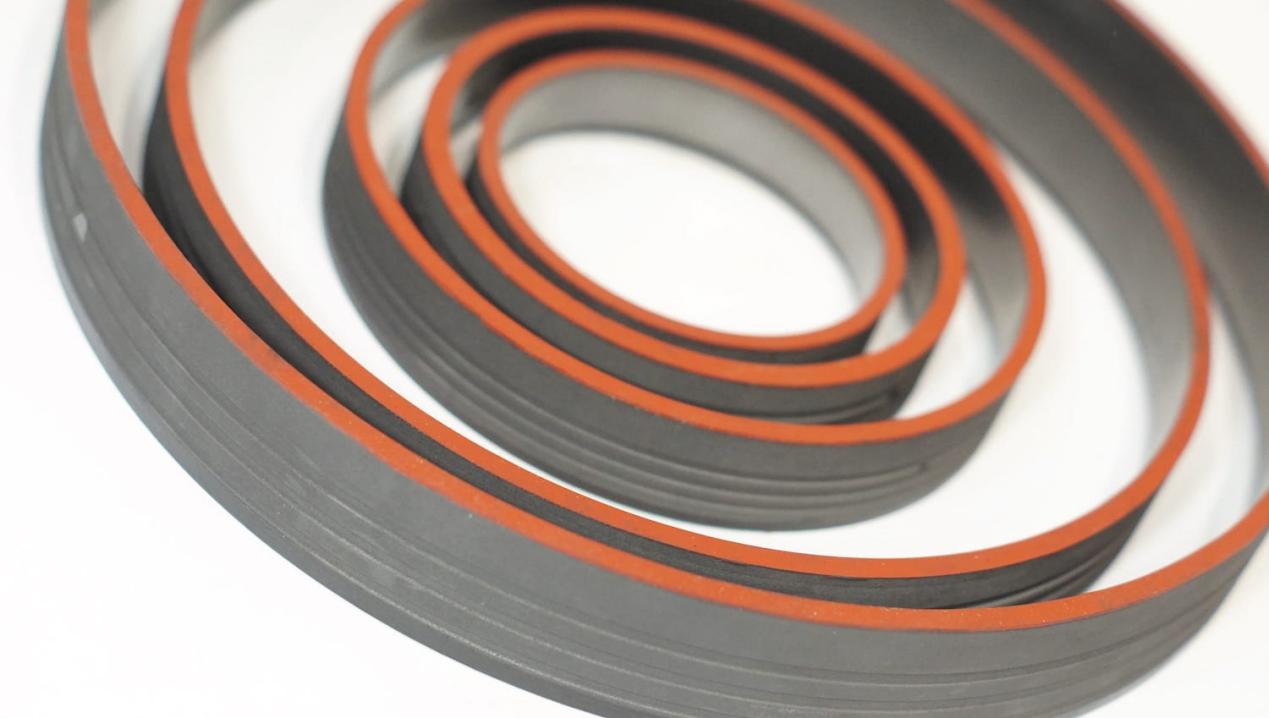

Custom Graphite Seal Rings for Different Casting Requirements
Haoxing Graphite provides customized graphite seal rings based on different casting equipment, billet sizes, and production requirements. With professional machining capabilities and graphite material expertise, the company can support customized designs for various hot-top casting applications.
Customization options include:
• Custom dimensions and shapes according to equipment requirements;
• Different graphite grades for specific operating conditions;
• Precision machining for accurate installation;
• Anti-oxidation treatment to improve durability;
• Prototype development and batch production support.
FAQ
What billet sizes can the graphite ring support?
The graphite ring can be manufactured for different crystallizer sizes, including round billet casting applications ranging from φ50–160mm.
Can Haoxing Graphite customize hot-top cast graphite rings?
Yes. Haoxing Graphite can customize dimensions, machining accuracy, graphite grades, and surface treatments according to different crystallizer designs and casting requirements.
What is a hot-top cast graphite ring used for?
A hot-top cast graphite ring is used in aluminum and steel hot-top casting systems to control molten metal flow, provide thermal insulation, and maintain stable solidification conditions during billet casting.
Why is isostatic graphite utilized in hot-top casting rings?
Isostatic graphite possesses features such as purity, thermal shock resistance, low friction, and chemical stability, which makes it a good material for high temperature casting applications.
Which variables determine the service life of graphite seal rings?
Isostatic graphite possesses features such as purity, thermal shock resistance, low friction, and chemical stability, which makes it a good material for high temperature casting applications.
